Model #: nghxrn

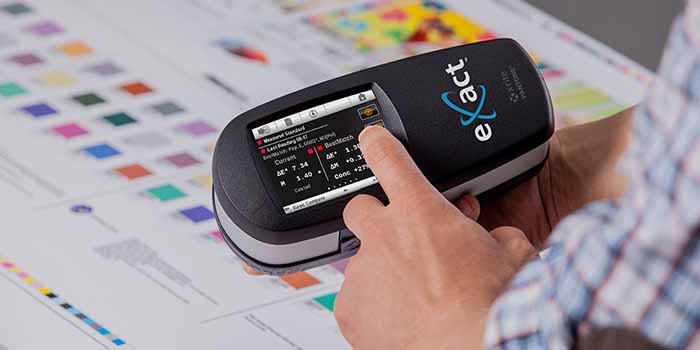

eXact Basic

Densitometer

Starting at $2,450

The eXact Basic is an entry-level densitometer designed specifically for CMYK jobs, replacing visual trial and error with fact-based color control. Enabling press operators to shorten make ready times and achieve a new level of color consistency.

Replace Trial and Error with Fact-Based Density Measurements

For press operators that need a simple device for color control at the press, the eXact Basic densitometer is the answer. This densitometer is designed specifically for CMYK jobs, enabling you to achieve and maintain accurate color throughout the run.

Replace visual trial and error with fact-based color control that shortens make ready times and helps you achieve a new level of color consistency.

Benefits:

Ensure Color Accuracy and Consistency

  • Provides accurate density and TVI (dot gain results)
  • Generates automatic recognition of color (CMYK) and patch type (paper, solids, and tints)

Improve Productivity

  • Shortens make ready time by 10% resulting in an ROI in less than 2 months

Manage Business Growth

  • Upgradeable by password to any higher-end spectrophotometer within the eXact family, making eXact a single portfolio that grows with your business needs

Rising Above the Rest

The eXact family offers a unique density and color measurement experience when compared to other products in the market through several differentiators:

  • Protected Automated White Tile Calibration protects the instrument’s accuracy from press room dust at all times. Other instrument’s have exposed white tile calibration that could affect the instruments accuracy in press room environments.
  • Consistency is key for brands. eXact has three measurement light sources compared to other instrument’s two. The three sources result in a truly ISO defined circumferential illumination that reduces variation resulting from angular rotation on media with any texture like uncoated stocks or digitally printed media that may have directional printing effects.
  • eXact provides the most versatile aperture set. You can meet different workflows needs and patch sizes when compared to other instruments: 1.5mm, 2mm, 4mm, & 6mm. eXact’s 2mm spot size is the most popular by capturing a sufficient number of printed dots but enables good measurement of 3mm patches.
  • Lastly, X-Rite provides an end-to-end color management experience with software integration for ink formulation and quality control while providing global service offerings that reduce the risk of workflow downtime.
Need More Information?

Specifications

Aperture 2 mm, 4 mm
Battery

Lithium Ion, 7.4VDC, 2200mAh

BestMatch Feature No
Calibration Automatic on integrated white reference
Communication Interface USB 2.0; No Bluetooth
Connectivity USB
Density Range 0.0 D – 3.0 D
Density Standards Status A, E, I, T and G
Dimensions (length, width, height) 18 cm x 7.8 cm x 7.6 cm
7.1" x 3.1" x  3.0"
Humidity 30 to 85% RH (non-condensing)
Industry Standards ISO 5-4:2009(E), ISO 13655:2009
Instrument Display Color touch-screen, 320 x 240 pixels
Internal Temperature & Humidity Sensor 30 to 85% RH (non-condensing)
Languages Supported Chinese Simplified, Chinese Traditional, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Slovenian, Spanish, Swedish, Turkish, Vietnamese
Light Source Gas filled tungsten (illuminant type A) and UV LED
Macintosh MacOS X 10.10, 10.11, 10.12, 10.13
Measurement Conditions M0, M1 (part 1), M1 (part 2) , M2, M3
Measurement Geometry 45°/0° ring illumination optics, ISO 5-4:2009(E)
Measurement Time < 1 sec
NetProfiler Support No
Operating Temperature Range 10°C to 35°C
50°F to 95°F
Optical Brigtener Compensation (OBC) No
PantoneLIVE Support No
Pass / Fail No
Service Indicator Certification Reminder
Short Term Repeatability - Density '+/- 0.01 D for CMYK (Status E or Status T measurements, maximum error compared to mean value of 10 measurements every 5 seconds at 2.0 D except for M3 Yellow at 1.7 D)
Software Development Kit

Yes

Software Modes Basic
Spectral Analyzer DRS spectral engine
Spectral Range 400 nm to 700 nm
Storage Temperature Range -20° to 50°C
-4° to 122°F
User Experience Start-up wizard, configurable, upgradable
Voltage 12 VDC @ 2.5 A
Warranty 1 year
Weight  700 g
1.6 lbs.
What's Included? USB cable, power supply, CD with software and documentation, docking/charging station, quick start guide, carrying case, device certificate
Windows Windows XP (32bit), Windows 7 (32 and 64 bit), Windows 8 (32 and 64 bit), Windows 10 (32 and 64 bit)
