Model #: np

NetProfiler

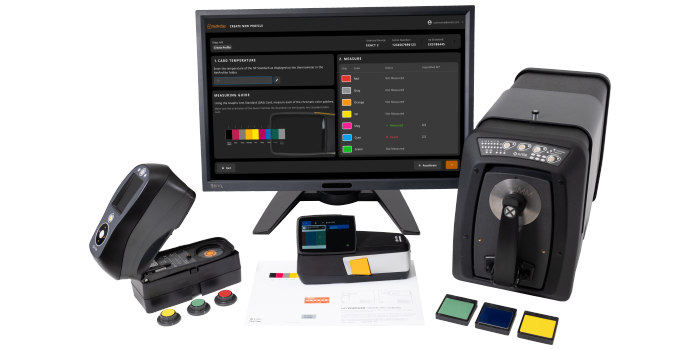

NetProfiler is a cloud-based blend of software and color standards for verifying and optimizing performance of color measurement devices, reducing variance among instruments.

Ensure color consistency across the supply chain

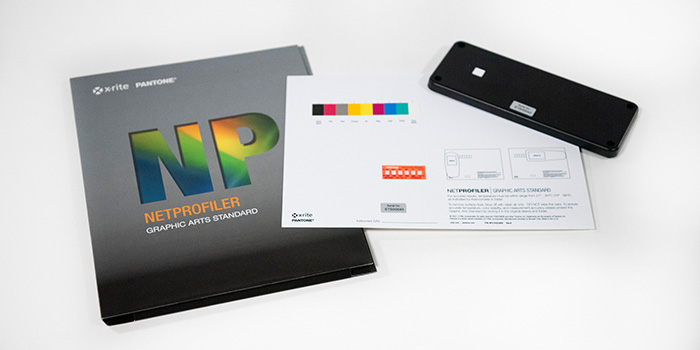

Complex supply chains that encompass multiple departments and geographies can result in color inconsistencies. NetProfiler, a cloud-based blend of software and color standards from X-Rite, reduces variances among measurement devices. It allows users to verify and optimize performance of color measurement instruments, correcting issues caused by age, wear or environmental conditions. It includes NetProfiler software, NetProfiler Calibrated Tile Set (ceramic plaque and set of Munsell color standards) and the NetProfiler software license valid for one year.

When NetProfiler is consistently used across the supply chain, it enables the accurate exchange of spectral color data for formulation of ink and other colorants, quality control and reproduction of Pantone or other special colors where color tolerances are tight and there is little room for error. It is an easy-to-use solution that is a critical element of an effective end-to-end color workflow.

Benefits:

  • Enables standardization of color acceptance criteria and quality across locations.
  • Profile a wide range of instruments with or without an Internet connection to ensure accurate performance.
  • Sophisticated monitoring tools can be configured to run on a regular basis for preventative maintenance to detect uncertainties, potential problems and instruments that need servicing to minimize waste and rework due to color issues.
  • Benefit from automatic reminders when an instrument needs profiling, with a centrally controlled enterprise-wide instrument management process that ensures all instruments are performing at peak levels.
  • Improved ceramic calibration media and new configurations optimized for handheld devices.

Errors in measurements can be the result of many different factors, and most can be corrected by profiling. This easy-to-use-solution helps to reduce costs due to measurement drift, identifies instruments in need of service, and helps to avoid inaccurate color in the production of products.

Need More Information?
Tolerancing 101

Register to learn everything you need to know about tolerancing in this 10-minute webinar. Save your seat today.

Specifications

Measurement Conditions Reflectance, SCI / SCE
Supported Profile Format N/A
Color Differences N/A
Color Spaces N/A
Illuminants N/A
Observers 2 degree,10 degree
Standard Indices N/A
3rd Party Software Supported N/A
Compatible Software Supporting DNG Profiles N/A
Configuration Options Industrial Benchtops, Industrial Handhelds, Graphic Arts Handhelds
Databases N/A
Experience Level Beginner to Advanced
Import/Export Format N/A
Languages Supported English, French, German, Spanish, Italian, Portuguese, Japanese, Chinese
Software Modes N/A
Supported Devices eXact, eXact XP, Ci4200, Ci52, Ci62, Ci64, 962, 964, Color i5, Color i7, CE-7000A, Ci7600, Ci7800, Ci7860, SP62, SP64, IntelliTrax 2
User Experience Wizard Like
Industry Standards See Standard Indices
Ink Wells / Ink Units No
Mobile Device Compatibility No
NetProfiler Support Yes
PantoneLIVE Support N/A
Pass / Fail N/A
Sample Preview N/A
Scanner Target Support N/A
What's Included? Software with Instructions,on USB Stick, Calibration Media per Configuration Option
Android No
Apple iOS No
Macintosh No
Windows Win 7, Win 10
Available Disk Space 5 GB
Connectivity USB-Port
Display Resolution 1024 x 768
Internet Connection Yes
Memory 2GB
Number of Displays Supported per Workstation 1
Optical Drive No
Processor Core 2 Duo, 2 G
Security No
Video Card N/A
Compatible Android Devices None
Compatible iOS Devices None

Case Studies


You Might Also Like

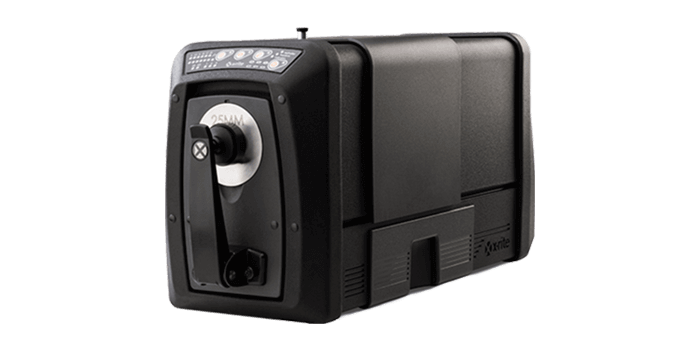

Ci7800 Benchtop Spectrophotometer

From inspiration through formulation, production and quality control, the Ci7800 benchtop sphere spectrophotometer is one of the most advanced instruments in the market.

Ci64 Spectrophotometer

Multi-Purpose Measurement


The Ci64, X-Rite’s most precise handheld sphere spectrophotometer, is available in three models: with simultaneous SPIN/SPEX, correlated gloss, and a UV option.

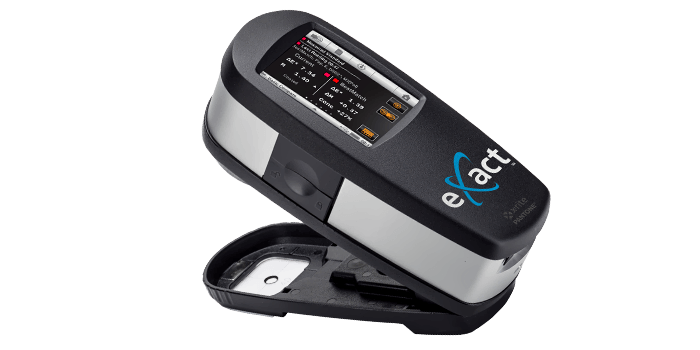

eXact Standard
