How To Maintain Your Sphere Benchtop Instrument
Model# CIA-8XXXXX
Ci7800
For the Most Precise Measurement
- Ideal for supply chain
- Offers ≤0.08 dE* inter-instrument agreement and ≤0.01 dE*repeatability
- Provides measurement flexibility with switchable reflectance and optional transmission apertures
Overview
Inter-Instrument Agreement
Repeatability
Device Geometry
![Versatile Control for Samples | X-Rite Ci7800]()
![Operator Confidence | X-Rite Ci7800]()
Specifications
31
cm
![Ci7800]()
56
cm
31
cm
56
cm
Support
Resources
Video
Measurement Reliability Across the Supply Chain
Like the Ci7600, the Ci7800 can measure opaque, translucent, and transparent samples. However, with tighter inter-instrument agreement and repeatability, it's ideal for manufacturers that need to seamlessly communicate, share, and coordinate color-critical values and specifications. The Ci7800 works with X-Rite Color iQC quality assurance software to quickly identify whether a sample is within tolerance, and if not, provides direct feedback to get it on target. Embedded NetProfiler status lights verify device is optimized for measurement performance.
≤0.08
dE*
≤0.01
dE*
d/8° Sphere
Versatile Control for Opaque, Transparent, Translucent, and Fluorescent Samples
The Ci7800 offers up to five reflectance and four transmission apertures to measure color and appearance on a wide range of samples in port up, port down, and port forward positions. It can be fitted with various accessories to measure textured materials, odd shapes, liquids, powders, and gels, and uses up to 3 UV filters to control optical brighteners in textiles, plastics, paint, coatings, and paper.
Ensure Operator Confidence and Consistent Measurements
The Ci7800 delivers consistent configuration across all locations and eliminates the potential for error using automated, software-driven setup. The on-board digital camera with preview and active targeting (remove the word to) guarantee accurate sample targeting. It can also capture images for future retrieval so any smudges, scratches or imperfections can be detected and accompany the measurement data for audit.
Maintains Performance
The Ci7000 Series is stable and will notify the operator if calibration is required to maintain measurement accuracy.
Temperature and Humidity Sensors
Instrument humidity and temperature sensors above the drawer ensure the environment is suitable for measurements.
Total Color Solution
Pairs with X-Rite formulation, quality control, and quality assurance software to accurately formulate, verify measurement details, pinpoint issues, and optimize device performance.
Ci7800
Specification
Design/Premedia
Formulation
Production
Quality Control
Specifications
| Calibration | White, Zero, UV |
| Communication Interface | USB 2.0 |
| Dimensions (length, width, height) | 56cm, 22cm, 31cm |
| Embedded NetProfiler Support | Yes |
| Humidity | 5% to 85%, non-condensing |
| Illumination Spot Size | 25mm, 17mm, 10mm, 6mm
3.5mm* (optional) |
| Inter-Instrument Agreement | 0.08 ΔE*ab avg. |
| Internal Temperature & Humidity Sensor | Yes |
| Lamp Life | ≥1,000,000 measurements |
| Lamp Timer | Yes |
| Laser Transmission Targeting | Yes |
| Light Source | Pulsed Xenon, D65 calibrated |
| Measurement Cycle Time | ≈ 2.5 seconds |
| Measurement Geometry | d/8° |
| Measurement Spot | 19mm, 10mm, 5mm, 2.5mm |
| Measurement Time | ≈ 2.5 seconds |
| NetProfiler Support | Embedded |
| Operating Temperature Range | 5°C to 40°C |
| Package Dimensions (length, width, height) | 71cm, 38cm, 53cm |
| Photometric Range | 0 to 200% |
| Photometric Resolution | 0.001% |
| Reflectance Aperture(s) | 4 std / 1 optional |
| Sample Preview | Door and Video |
| Service Indicator | Status panel |
| Shipped Weight | 25kg |
| Short Term Repeatability - White | .01 ΔE*ab RMS on white ceramic |
| Software Development Kit | XDS4 |
| Spectral Analyzer | 2D CCD array
holographic grating |
| Spectral Interval | 10 nm (default); 5nm; 20nm |
| Spectral Range | 360nm-780nm |
| Spectral Reporting | 10 nm (default); 5nm; 20nm |
| Status Panel | Yes |
| Storage Temperature Range | -20° to 50°C |
| Transform Support | Embedded |
| Transmission Aperture(s) | 4 |
| Voltage | 100 to 240 VAC / 50 to 60Hz |
| Warranty | 12 months |
| Weight | 20.5kg |
Support
Parts and Accessories
 |

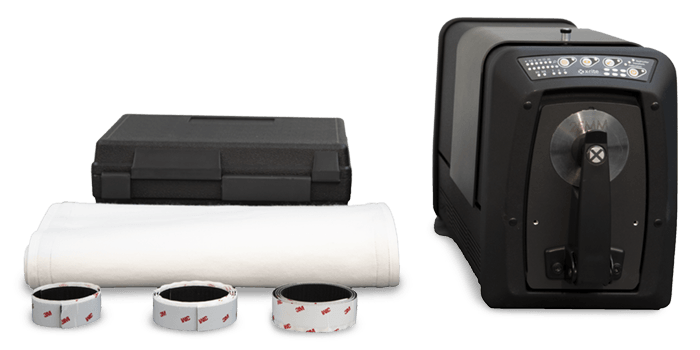

Ci7000 Filter Kit | $454 View Details |
 |

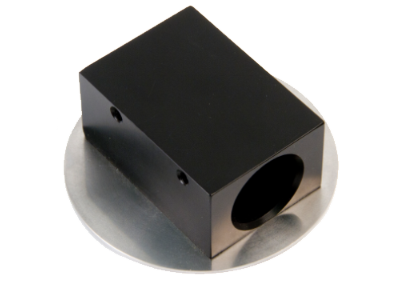

Orange Juice Test Tube Holder Assembly | $501 View Details |
