Model # ETV-XRaPLbc
eXact™ 2 Plus Portable Spectrophotometer
For all Print and Packaging Substrates
- The ultimate handheld with the versatility to switch between polarized and non-polarized
- 100% operator confidence with Mantis™ video targeting
- Greater range, speed, and security with onboard Wi-Fi
Overview
Inter-Instrument Agreement
Measurement Time
Device Geometry
![eXact 2]()
![eXact 2]()
![exact-2-04-new.png]()
![exact-2-02-new.png]()
Specifications
7.7
cm
![eXact 2 Dimension image]()
21.2
cm
7.7
cm
21.2
cm
Support
Resources
Video
The Ultimate Color Measurement Tool for Paper and Film

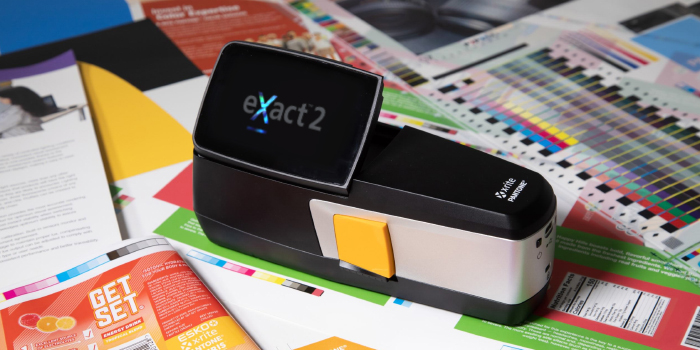

eXact 2 Plus is the most powerful model. It includes all features of eXact 2 and eXact 2 Xp, plus adds the ability to evaluate metamerism, opacity, and color strength, as well as switch between polarized and non-polarized measurements.
0.25
ΔEab
< 1
sec
45:0
Full eXact 2 Functionality for Paper, Flexible, and Unique Substrates

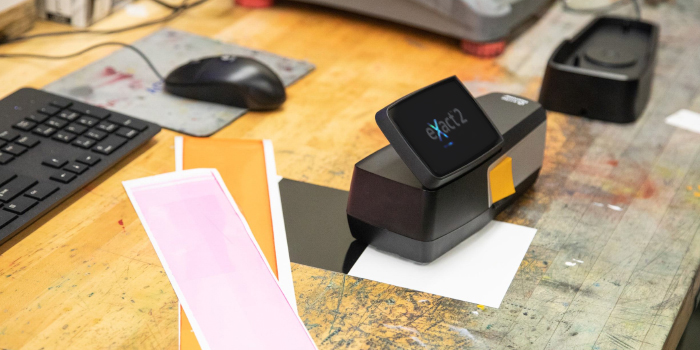

eXact 2 Plus includes all the features and ability to measure on both polarized and non-polarized substrates. Like the other eXact 2 models, eXact 2 Plus offers Mantis, Digital Loupe, intuitive touchscreen, and non-contact measurement.
Specialized Measurement Functions
Ideal for ink manufacturers and printers with color critical jobs, the eXact 2 Plus offers specialized measurement functionality, including opacity, metamerism, color strength, and paper quality. eXact 2 Plus also includes a one-year subscription to PantoneLIVE.
Quickly Scan M0, M1, M2, M3 in One Measurement

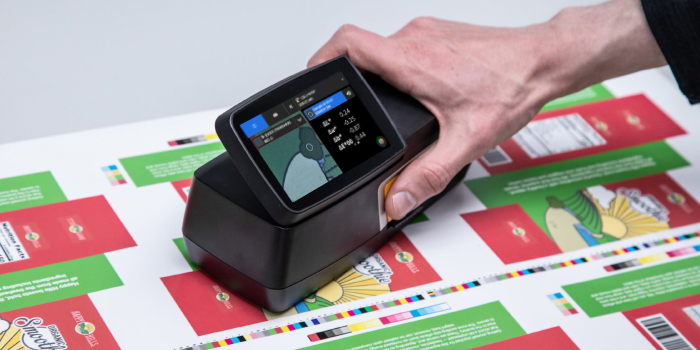

The eXact 2 Plus can easily toggle between spot and scan measurements using integrated wheels and patch recognition technology, speeding up measurement by 17%. eXact 2 Plus simultaneously measures M0, UV included/ISO 13655:2017; M1, D50/ISO 13655:2017; M2, UV excluded/ISO 13655:2017; and M3 - Polarization/ISO 13655:2017.
A Complete Ink and Print Solution

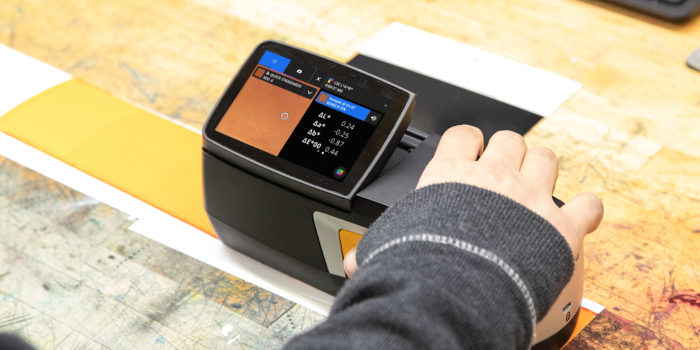

Quickly collect and visualize your color data to find the information you need, when you need it. The eXact Plus offers enhanced functions in addition to the on-screen, embedded quality control and quality assurance capabilities and simplified ink workflows. Work faster and more securely anywhere in your facility with onboard Wi-Fi and easily switch between polarized and non-polarized substrates.
eXact 2 is Available in Three Models to Measure a Variety of Substrates

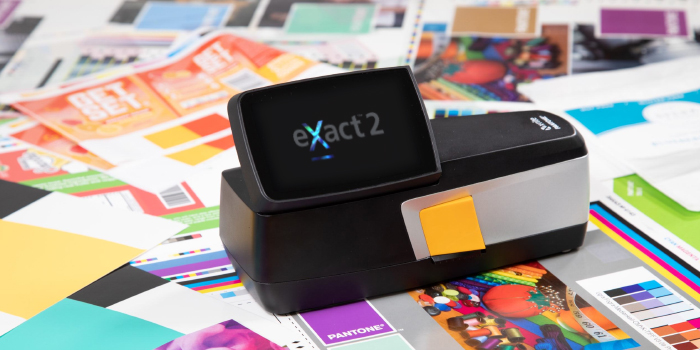

Capture color measurements on paper with eXact 2; film, poly and foil with eXact 2 Xp; and all ink, print and packaging substrates with eXact 2 Plus.
Get Full Access to X-Rite Link Device Dashboard
Get up-to-date intelligence on device health and service history, plus remotely deploy firmware updates, color libraries, and standards to your entire fleet with X-Rite Link dashboard.
End-to-End Protection for Peace of Mind
All eXact 2 models include two-years of ISO:9001 compliant NetProfiler verification and comprehensive coverage, including accidental damage protection and a loaner device with a Service Care Plan in regions where applicable.
Here's how the eXact 2 Plus Standard fits into your workflow
Specification
Design/Premedia
Formulation
Production
Quality Control
Consistent color is a journey, but regardless of where you fall on the color maturity model, X-Rite Pantone has color measurement solutions for a wide range of substrates to help you achieve the best color possible.

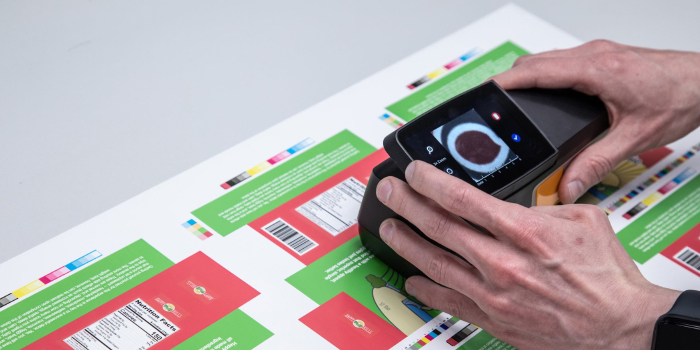

With eXact 2, what you see is what you measure. Learn more about the innovative technology behind the eXact 2, including patented Mantis™ video targeting and Digital Loupe functionality.
Are you wondering which eXact 2 is right for your shop? Today we’ll compare features between the eXact 2, eXact 2 Xp, and eXact 2 Plus to help you decide.
Specifications
| Aperture | 1.5 mm, 2 mm, 4 mm or 6 mm |
| Battery | Lithium Ion, 3.63VDC, 4750mAh |
| BestMatch Feature | Yes |
| Calibration | Automatic on white reference |
| Color Differences | CIE ∆E* (1976), ∆ECMC, CIE ∆E* (2000), and CIE ∆E* (1994) |
| Color Spaces | CIE L*a*b*, CIE L*C*h° |
| Communication Interface | USB-C; Wi-Fi |
| Connectivity | USB-C; Wi-Fi |
| Density Range | 0.0 D – 3.0 D |
| Density Standards | Status A, E, I, T and G |
| Dimensions (length, width, height) | 21.2 cm x 7.7 cm x 7.7 cm (LxWxH)
8.4" x 3.0" x 3.0" (LxWxH) |
| G7 Certification | Yes with embedded G7, PSO, Japan Color job templates |
| Humidity | 30 to 85% RH (non-condensing) |
| Illuminants | A, C, D50, D55, D65, D75, F2, F7, F11, F12 |
| Import/Export Format | CxF3 |
| Industry Standards | ISO 5-4:2009(E), ISO 13655:2017 |
| Instrument Display | Color touch-screen, 800 x 480 pixels |
| Inter-Instrument Agreement | Average: 0.25 ΔEab, Max: 0.45 ΔEab (for M3: 0.55 ΔEab) (Measurements using X-Rite manufacturing standards at a temperature of 23°C +/- 1°C, 40-60% RH for all measurement modes on 12 BCRA color tiles and a white ceramic reference (D50, 2°)) |
| Languages Supported | Bulgarian Chinese Simplified, Chinese Traditional, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Romanian, Russian, Serbian, Slovenian, Spanish, Swedish, Thai, Turkish, Vietnamese |
| Light Source | LED |
| Macintosh | macOS 10.15, macOS 11, macOS 12 |
| Measurement Conditions | 2: M0, M1 (method 2), M2, M3 |
| Measurement Geometry | 45°:0° ring illumination optics, ISO 13655:2017 |
| Measurement Time | < 1 sec |
| NetProfiler Support | Yes |
| Observers | 2° and 10° |
| Operating Temperature Range | 10°C to 35°C 50°F to 95°F |
| PantoneLIVE Support | Yes; Embedded Pantone Libraries |
| Pass / Fail | Yes |
| Scan Length | Max: 1,120mm (44”) |
| Scanning Capability | Yes, Embedded Scanning |
| Service Indicator | Certification Reminder |
| Short Term Repeatability - Density | +/- 0.01 D for CMYK (Status E or Status T measurements, maximum error compared to mean value of 10 measurements every 5 seconds at 2.0 D except for M3 Yellow at 1.7 D) |
| Short Term Repeatability - White | 0.02 ΔEab (standard deviation) White BCRA (Error compared to mean value of 20 measurements every 5 seconds) |
| Single Pass Scan | M0, M1, M2, M3 |
| Software Development Kit | Yes |
| Spectral Analyzer | DRS spectral engine |
| Spectral Interval | 10 nm |
| Spectral Range | 400 nm to 700 nm |
| Standards | Memory capacity for more than 50,000 standards |
| Storage Temperature Range | -20° to 50°C -4° to 122°F |
| Supported Substrates | Paper, corrugated, carton board |
| User Experience | Start-up wizard, configurable, customize toolset, upgradable |
| Voltage | 12 VDC @ 2.5 A (Docking Station Power Supply) |
| Warranty | 1 year |
| Weight | 620g, 1.4 lbs. |
| What's Included? | USB-C cable with Adapter for USB-A, Power Supply, Software and documentation, Docking/Charging Station, Quick Start Guide, Carrying case, ISO 9000 certificate. |
| Windows | Windows 10 (32 and 64 bit), Windows 11 |
