Model #: 2900

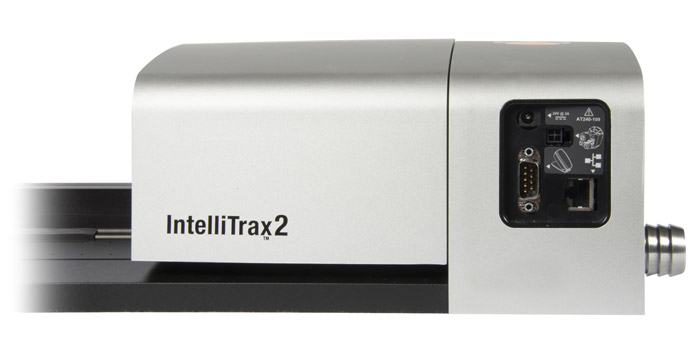

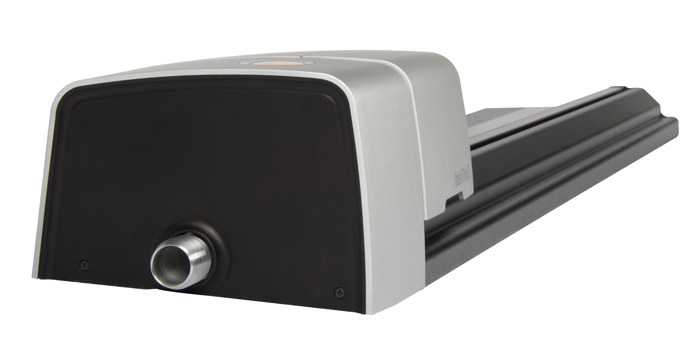

IntelliTrax2

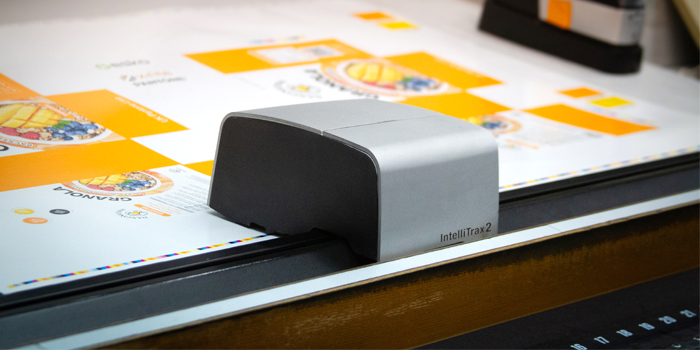

Scan the color bar on a typical press sheet in less than 10 seconds. IntelliTrax2 is the ideal color management solution for high-end, high-speed printing/converting operations.

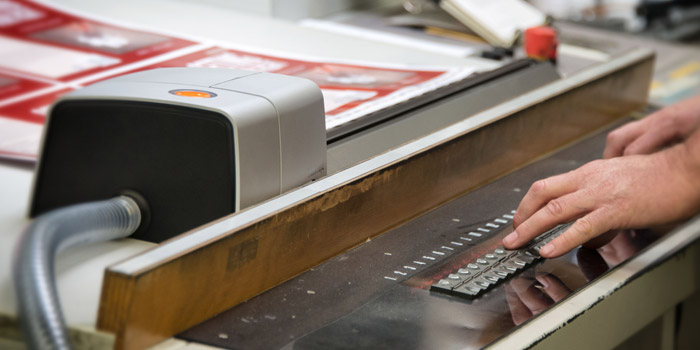

Ultra-Fast Automated Press-Side Color Control
Shorter runs. Faster turn times. Accurate, consistent color. In order to remain competitive, printers and packaging converters must address these market trends. Reducing make-ready time and waste, and minimizing errors and rework, are critical to profitability. Managing color by eye and/or depending on ink density measurements will not deliver against these requirements. By introducing next-generation color measurement instruments into the press-side quality control process, printers and packaging converters can assure optimum color quality, fast make-ready and reduced waste.
Benefits:

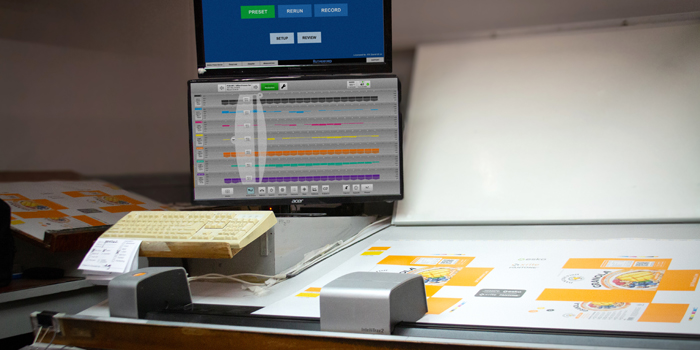

- Reduced make-ready time and waste. IntelliTrax2 reports results on screen instantly so press operators can quickly make adjustments, even before color drift is visible to the human eye.
- Full Range of Color Measurements. In less than 10 seconds, IntelliTrax2 measures process colors, spot colors, PANTONE® colors, paper color, tone value increase, gray balance and ink
density. - Non-Contact Instrument. No need to worry about smudging or scratching the image during the measurement process.
- Support for industry standards. IntelliTrax2 software supports the majority of global graphic arts standards, including M1 to accommodate optical brighteners, M3 for measuring wet ink and full support for GRACoL, SWOP 2013, PSO, and FOGRA 51 and 52.
- End-to-End Color Workflow. IntelliTrax2 can directly access the PantoneLIVE database for accurate spectral target values for corporate and other spot colors and can exchange job data with ColorCert: X-Rite Edition for statistical process control.
Specifications
| BestMatch Feature | Yes |
|---|---|
| Black Background With Sheet Storage | Yes |
| Calibration | Automatic on integrated and covered white reference |
| Color Differences | CIE ∆E* (1976), ∆E CMC, CIE ∆E* (2000), and CIE ∆E* (1994) |
| Closed Loop Support | Yes |
| Color Bar Alignment | Yes |
| Color Spaces | CIE L*a*b*, CIE L*C*h° |
| Communication Interface | Ethernet |
| Configuration Options | Head type, track length, aperture, Handheld, foot switch |
| Connectivity | Ethernet |
| Density Range | 0.0 D to 3.0 D |
| Density Standards | Status A, E, I, T, Tx, Ex, Hi-Fi |
| Display Resolution | Minimum: 17” touch-screen monitor with 1280 x 1024 resolution Recommended: 22” touch-screen monitor with 1920 x 1080 resolution |
| Embedded NetProfiler Support | Yes |
| G7 Certification | Yes |
| Humidity | 30 to 85% RH (non-condensing) |
| Illuminants | A, C, D50, D65, D75, F2, F7, F11, D12 |
| Image Contact During Measurements | No Contact |
| Import/Export Format | CxF3, jtl, cbl, |
| Industry Standards | ISO 5-4:2009(E), ISO 13655:2009 |
| Ink Wells / Ink Units | Density Version: Up to 8 Spectral Version: Up to 16 |
| Inter-Instrument Agreement | 0.3 dE*ab |
| Languages Supported | Chinese Simplified, Chinese Traditional, English, French, German, Italian, Japanese, Portuguese, Russian, Spanish |
| Light Source | Gas filled tungsten (illuminant type A) and UV LED |
| Measurement Geometry | 45°/0° ring illumination optics, ISO 5-4:2009(E) |
| Measurement Conditions | M0, M1, M3 |
| Measurement Background | Black as specified in ISO 12647-2 and 3 |
| NetProfiler Support | Yes |
| Observers | 2° and 10° |
| Operating Temperature Range | 10°C to 35°C 50°F to 95°F |
| PantoneLIVE Support | Yes |
| Pass / Fail | Yes |
| Patch Size | Small: 2 mm x 3 mm Medium: 3 mm x 3 mm Polarizer: 3 mm x 3 mm |
| Scan Length | 29" (74cm) 32" (81cm) 40"(102cm) 44” (112cm) 56" (142cm) 65" (165cm) |
| Scanning Speed | 170 mm / sec |
| Spectral Analyzer | DRS spectral engine |
| Spectral Interval | 10 nm |
| Spectral Range | 400 nm to 700 nm |
| Spectral Reporting | 400 nm to 700 nm with 10mm interval |
| Storage Temperature Range | -20° to 50°C -4° to 122°F |
| Short Term Repeatability - Density | On White: ± 0.01 D max. Cyan, Magenta, and Black: ± 0.02 D @ 1.8 D Yellow: S/M: ± 0.02 D @ 2.0 D Polarizer: ± 0.03 D @ 1.8 D |
| Software Development Kit | Yes |
| Software Modes | Density /Spectral |
| Short Term Repeatability - White | 0.15 dE max |
| Supported Devices | IntelliTrax2, eXact |
| Scanning Area | Color bar within 38mm from the sheet edge |
| Scanning Capability | Yes |
| Sheet Storage | Yes |
| Single Pass Scan | M0/M1 or M0/M3 or M1/M3 |
| Track Sizes | 29" (74cm) 32" (81cm) 40"(102cm) 44” (112cm) 56" (142cm) 65" (165cm) |
| Voltage | 100 - 240VAC, 50/60Hz |
| Warranty | 1 year |
| What's Included? | Vacuum pump, Cabling, Power supply, Ethernet cable, Software CD, Manuals, device certificate |
| Windows | Windows 7 (32 and 64 bit), Windows 8 (32 and 64 bit), Windows 10 (32 and 64 bit) |
Featured Support
Firmware: Support Articles:- IntelliTrax - XRGA Information
- Creating a Repeating Colorbar Pattern in IntelliTrax
- IntelliTrax Aperture Options and Colorbar Minimums
Featured Training
Online Training / eLearning: Onsite Training: Seminar: See All TrainingCase Studies

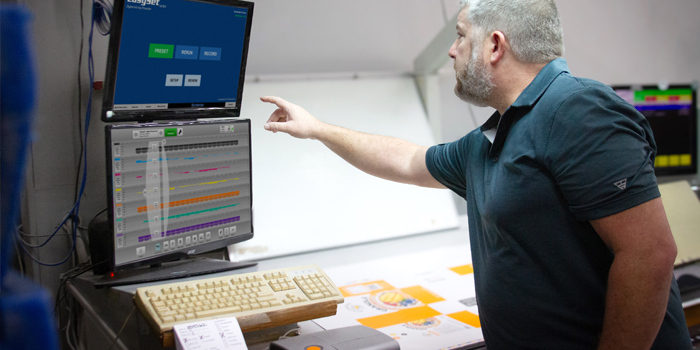

Read this case study to learn how T&N Printing, a reputable offset printer, has reduced make-ready by 66% by presetting ink keys using IntelliTrax and Rutherford closed-loop system.

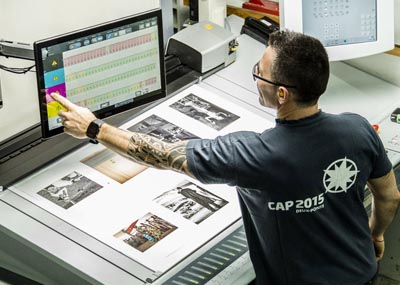

French printer Manufacture d’Histoires des Deux-Ponts adopts closed-loop color control to optimize its offset press.
