Model # nghxra

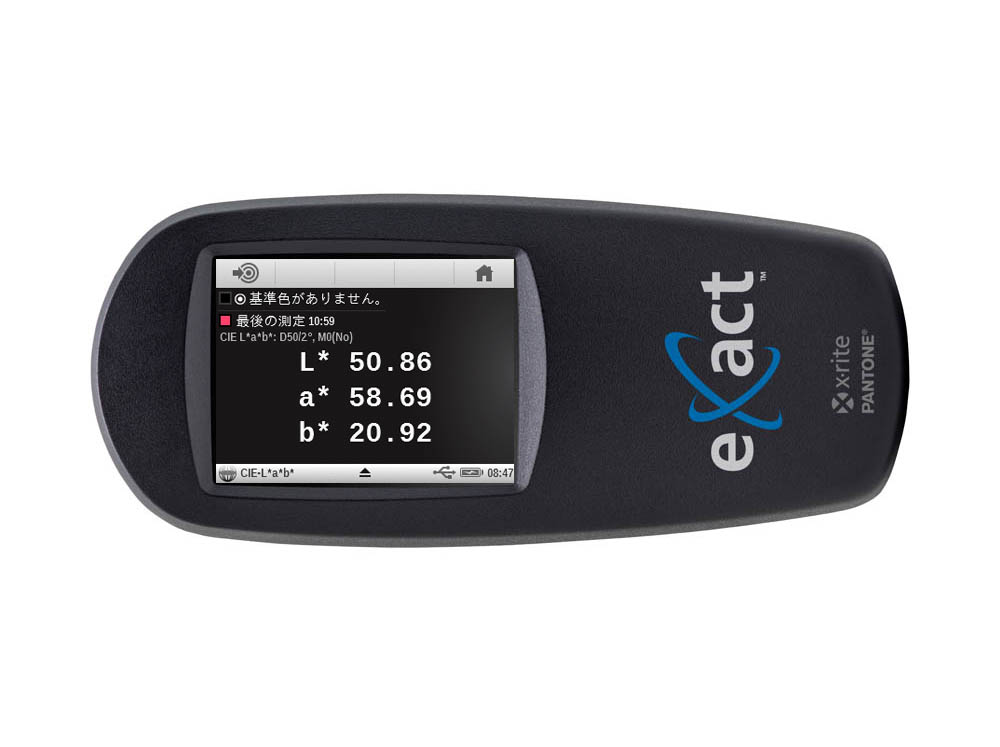

eXact Basic Spectro
New
Basic Spectrophotometer
- Compares L*a*b* and density measurements against standards with pass/fail indication
- Accommodates multiple patches with four aperture sizes
- Portable with Bluetooth connectivity
Overview
Densitometric Range
Measurement Time
Device Geometry
![eXact Family]()
![eXact]()
Specifications
3.1
in
![Carousel Image 1]()
7.1
in
3.1
in
7.1
in
Support
Resources
Best-in-Class L*a*b* and Density Measurement
Looking for a reliable device to measure L*a*b* and all aspects of CMYK in the pressroom? Look no further than the eXact Basic Spectro. It automatically detects color and patch type while also comparing production color and density measurements against stored standards with pass/fail indication. The eXact Basic Spectro can streamline your workflow, reducing measurement time and enhancing print precision from any location.
0.00 - 3.00
Density
< 1
Second
45:0
Easy-to-Use, Secure, and Customizable
Each user can configure the device and control all elements on a selected job. Enhanced security features and password protection ensure the instrument and tool configuration remain secure.
An Extensive Tool Set for Color Control
The eXact Basic Spectro can verify basic colorimetric functions and all aspects of density, including ink trap, print contrast, and hue error. It can also measure offset printing plates, allowing you to measure a print curve and view density trends.
Flexible Aperture Sizes
Offers four different aperture sizes, including 1.5, 2, 4, and 6mm, for a variety of applications.
Enhanced Measurement Speed
Simultaneously measures four M conditions (M0/M1/M2/M3) in less than one second in spot mode.
Protected Automated White Tile Calibration
Protects the instrument from pressroom dust at all times.
eXact Basic Spectro
Specification
Design/Premedia
Formulation
Production
Quality Control
Specifications
| Import/Export Format | CxF3 |
| Spectral Interval | 10 nm |
| Voltage | 12 VDC @ 2.5 A |
| Aperture | 1.5mm, 2mm, 4mm, 6mm |
| Battery | Lithium Ion, 7.4VDC, 2200mAh |
| BestMatch Feature | No |
| Calibration | Automatic on integrated white reference |
| Communication Interface | USB 2.0; Bluetooth (optional) - Class II |
| Configuration Options | BluetoothBluetooth; Xp edition for flexible packaging substrates |
| Connectivity | USB, Bluetooth |
| Density Range | 0.0 D – 3.0 D |
| Density Standards | Status A, E, I, T and G |
| Dimensions (length, width, height) | 18 cm x 7.8 cm x 7.6 cm 7.1" x 3.1" x 3.0" |
| Embedded NetProfiler Support | No |
| G7 Certification | No |
| Japan Color Certification Job | Yes |
| Library Function | No |
| Humidity | 30 to 85% RH (non-condensing) |
| Industry Standards | ISO 5-4:2009(E), ISO 13655:2009 |
| Instrument Display | Color touch-screen, 320 x 240 pixels |
| Internal Temperature & Humidity Sensor | Internal Temperature & Humidity Sensor |
| Languages Supported | Chinese Simplified, Chinese Traditional, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Slovenian, Spanish, Swedish, Turkish, Vietnamese |
| Light Source | Gas filled tungsten (illuminant type A) and UV LED |
| Measurement Conditions | M0, M1 (part 1), M1 (part 2) , M2, M3; also available in Xp variant for flexible packaging substrates |
| Measurement Geometry | 45°/0° ring illumination optics, ISO 5-4:2009(E) |
| Measurement Time | < 1 sec |
| NetProfiler Support | No |
| Operating Temperature Range | 10°C to 35°C 50°F to 95°F |
| PantoneLIVE Support | Yes |
| Pass / Fail | Yes |
| Service Indicator | Certification Reminder |
| Short Term Repeatability - Density | "+/- 0.01 D for CMYK (Status E or Status T measurements, maximum error compared to mean value of 10 measurements every 5 seconds at 2.0 D except for M3 Yellow at 1.7 D)" |
| Software Development Kit | Yes |
| Spectral Analyzer | DRS spectral engine |
| Spectral Range | 400 nm to 700 nm |
| Spectral Reporting | 400nm to 700nm with 10nm interval |
| Storage Temperature Range | -20° to 50°C -4° to 122°F |
| User Experience | Start-up wizard, configurable, upgradable |
| Warranty | 1 year |
| Weight | 700 g 1.6 lbs. |
| What's Included? | USB cable, power supply, CD with software and documentation, docking/charging station, quick start guide, carrying case, device certificate |
| Windows | Windows XP (32bit), Windows 7 (32 and 64 bit), Windows 8 (32 and 64 bit), Windows 10 (32 and 64 bit) |
