Model #: ci64-xr
Ci64 Spectrophotometer
Multi-Purpose Measurement
The Ci64, X-Rite’s most precise handheld sphere spectrophotometer, is available in three models: with simultaneous SPIN/SPEX, correlated gloss, and a UV option.
Consistent Color for Improved Profitability
Benefits:
- Accurately measure reflective or uneven surfaces or materials including optical brightening agents for a wide variety of products and packaging types.
- Ensure a color quality audit trail across multiple devices and locations to ensure consistent color and brand integrity in a supply chain.
- Access up to 4,000 reference samples stored in the device for fast access to existing data.
- Increase instrument up-time with optional dual-bay charging to use the Ci64 while charging the second battery.
- Remotely ascertain and optimize with NetProfiler -With NetProfiler, users can apply corrections to improve measurement performance, with or without a PC connection.
The Ci64 is available in three models. All three support simultaneous SPIN/SPEX output and Correlated Gloss measurements and have embedded NetProfiler support. Choose from:
- The Ci64 with switchable 4mm and 8mm measurement apertures;
- The Ci64L, featuring a 14mm measurement aperture for measuring larger samples; or
- The Ci64UV, with switchable 4mm and 8mm measurement apertures and both Tungsten and UV LED illumination
A remote measurement trigger allows operators to initiate hands-free measurement. USB and Bluetooth** connectivity are available.
** Bluetooth available in compliant countries only (CE, USA, Canada, China, India, Japan, Korea, Taiwan)
Specifications
| Short Term Repeatability - White | .04 ΔE*ab on white ceramic |
|---|---|
| Measurement Geometry | d/8° |
| Inter-Instrument Agreement | 0.13 ΔE*ab avg. (8mm) |
| Illumination Spot Size | 20mm or 14mm and 6.5mm |
| Lamp Life | Approx. 500,000 measurements |
| Light Source | Gas-filled tungsten lamp
+ UV LEDs* |
| Measurement Cycle Time | ≈ 2 seconds |
| Measurement Spot | 14mm or 8mm and 4mm |
| Measurement Time | ≈ 2 seconds |
| Photometric Range | 0 to 200% |
| Photometric Resolution | 0.01% |
| Spectral Analyzer | Blue-enhanced silicon photodiodes |
| Spectral Interval | 10nm |
| Spectral Range | 400nm-700nm |
| Spectral Reporting | 10nm |
| Color Differences | [√/X], Δecmc, Δlab, ΔE00, Δreflectance, ΔE94, ΔXYZ, ΔL*a*b*, ΔYxy, , ΔL*C*h°, ΔL*u*v*, Verbal Difference |
| Color Spaces | Lab, L*a*b*, Reflectance, L*C*h°, Munsell Notation, XYZ, Yxy, L*u*v* |
| Illuminants | A, C, D50, D65, F2, F7, F11 & F12 |
| Observers | 2° & 10° |
| Standard Indices | [√/X], YI1925, WI Taube, ΔWI73, Reflectance, WI98, MI, Δreflectance, ΔWI Berger, WI73, MI6172, ΔYI98, ΔWI Hunter, Gray Scale, WI Berger, Gloss, ΔYI73, ΔWI Stensby, YI98, WI Hunter, ΔYI1925, ΔWI Taube, YI73, WI Stensby, ΔWI98, Averging, 555 Shade Sort |
| Reflectance Aperture(s) | 1 or dual |
| Humidity | 5% to 85%, non-condensing |
| Operating Temperature Range | 50° to 104°F (10° to 40°C) |
| Storage Temperature Range | '-4° to 122°F (-20° to 50°C) |
| Dimensions (length, width, height) | 21.3 cm 9.1 cm 10.9 cm |
| Weight | 1.06 kg |
| Package Dimensions (length, width, height) | 51cm, 20cm, 41cm |
| Shipped Weight | '7kg |
| Communication Interface | USB 2.0, Bluetooth* |
| Import/Export Format | CSV |
| Instrument Display | Backlit Color Graphic LCD |
| Languages Supported | English, German, French, Spanish, Italian, Portuguese, Chinese Simplified, Chinese Traditional, Korean, and Japanese |
| Software Development Kit | XDS4 |
| Battery | Li-ion |
| Battery Life | 1000 measurements (non-UV)
@ 10 sec intervals |
| Voltage | 100-240VAC 50/60Hz,
12VDC @ 2.5A |
| Sample/Measurement | 4000 |
| Standards | 1000 |
| Calibration | White, Zero, UV* |
| Embedded NetProfiler Support | Yes |
| NetProfiler Support | Embedded |
| PantoneLIVE Support | Via software |
| Pass / Fail | Yes |
| Sample Preview | Targeting window |
| Transform Support | Embedded |
| Warranty | 12 months |
| What's Included? | Instrument with white calibration standard, black trap, green standard, manual(CD), AC adapter, USB cable, carry case, UV cal standard* |
Featured Support
Firmware: Software:- Ci6X Instrument Configuration Tool v1.37
- NetProfiler 3 v3.3.9
- Ci6X Instrument Configuration Tool v1.25
- Ci6x instrument display "freeze"
- Ci6x device giving wrong calibration tile message or failing calibration FAQ
- Software Support for the Ci6x series
- Ci6x appears not to power up
- Measuring "True" Color; Should I use SCE or SCI?
Featured Training
Online Training / eLearning: Onsite Training: Seminar: See All TrainingCase Studies
Inkk offers a unique service that allows creation of custom nail polish colors to match a color found in a dress, a car or any other inspirational item based on a submitted image.
Ultimate Textile was looking for the next generation in handheld devices to ensure the continued delivery of the highest quality dyed fabrics to its customers.
Testimonials
Other Resources
- Don’t Let Optical Brightening Agents Alter Your Color Accuracy
- Measuring Unique Samples | X-Rite Webinar
- Color Evaluation Solutions in Product Manufacturing
- The Future of Color Management for Plastics & Coatings
- End-to-End Solutions for Color Consistency
- The Future of Color Management
- The Numbers Behind the Measurement | X-Rite Free Webinar
- How to Measure Unusual Objects
- How to Quality Check Formulated and Built Colors
- Fast Track to Improved Color for Brand Owners
- 4 ways to achieve sustainability
- Proper Tolerancing for Consistent Color
- How to Measure Reflective and Directional Surfaces
- Achieve Timely and Consistent Color in Packaging
- Is My Instrument Measuring Correctly?
- How Color Standards Can Improve Profitability
- How to Improve Color Quality and Efficiency with Label Printing
- Cut Your Formulation Steps | X-Rite Free Webinar
- Tips on How to Minimize Color Matching Errors | X-Rite Upcoming Webinar
- Reducing Color Rejections in a Manufacturing Workflow | X-Rite Free Webinar
- Welcome to Color Measurement Geometry
- Conquer Consistency
- Pantone Certification: First Unique Spot Colors Standardization Program
- Pantone Certification: First Unique Spot Colors Standardization Program
- Pantone Certification: First Unique Spot Colors Standardization Program
- Define a Realistic Pass/Fail Tolerance| Upcoming X-Rite Webinar
- Pantone Certification: First Unique Spot Colors Standardization Program
- Pantone Certification: First Unique Spot Colors Standardization Program
- Pantone Certification: First Unique Spot Colors Standardization Program
- Get to the Root Cause of Color Issues | X-Rite Free Webinar
- Tolerancing Basics | Free X-Rite Webinar
- Define A Realistic Pass/Fail Tolerance | Watch X-Rite Free Webinar
- Define A Realistic Pass/Fail Tolerance | Watch X-Rite Free Webinar
- Define A Realistic Pass/Fail Tolerance | Watch X-Rite Free Webinar
- Define A Realistic Pass/Fail Tolerance | Watch X-Rite Free Webinar
Webinars
- Guide to Choosing the Right Tolerancing Method
- Controlling Optical Brighteners
- Keep Your Spectrophotometer in Excellent Health | X-Rite Whitepaper
- Choosing the Right Tool for Color Quality on any Surface
- Color Your Business Lean | X-Rite Whitepapers
- Color Your Mergers and Acquisitions Successful
- The Alchemy of Color
- A Guide to Understanding Color | Color Management Whitepaper
Whitepapers
You Might Also Like
Color iQC
Quality Assurance Software
Color iQC is a unique, job-oriented upgradeable color quality control solution designed to meet evolving color measurement and management requirements in all industrial market segments.

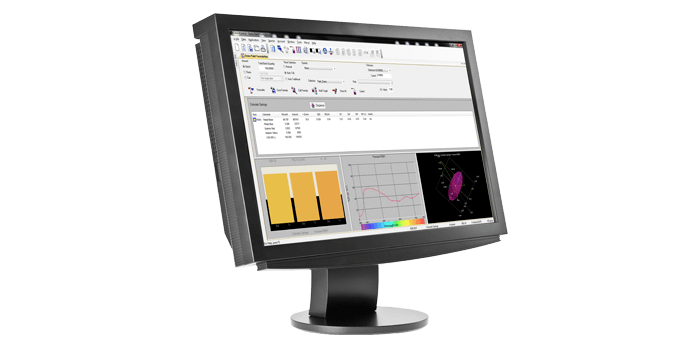

Color iMatch
Formulation Software
Color iMatch formula management and quality control software for plastics, paint, and textiles yields better matches in fewer steps and with fewer corrections.
VERSION 10 AVAILABLE NOW
NetProfiler
NetProfiler is a cloud-based blend of software and color standards for verifying and optimizing performance of color measurement devices, reducing variance among instruments.
News and Events
Webinars

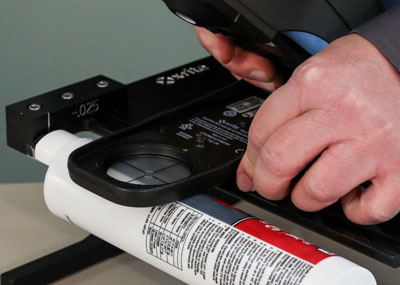

Measuring Unique Samples
