"Having a reliable portable instrument like the X-Rite Ci64UV that we can use throughout the plant to confirm color accuracy at all stages of production has made a significant difference to our business."
Model # CI64-XR
Ci64 Handheld Spectrophotometer
For the Most Accurate and Precise Measurement
- High-end quality control solution ideal for use in the lab, field, and manufacturing plant
- Available with switchable apertures to measure a variety of samples
- Evaluates optical brightening agents with UV model
Overview
Inter-Instrument Agreement
White Ceramic Short Term Repeatability
Measurement Spot
![Ci64 spectrophotometer measuring white plastic (optical brightening agent color measurement)]()
![Ci64 spectrophotometer in use]()
Specifications
10.9
cm
![Ci60]()
21.3
cm
10.9
cm
21.3
cm
Support
Resources
Video
Ultimate Handheld for Consistent Color Control
X-Rite’s most precise and accurate handheld sphere spectrophotometer, the Ci64 is available in multiple configurations with simultaneous SPIN/SPEX, correlated gloss, and a UV option to accurately measure uneven surfaces on a variety of products and packaging types.
0.13
ΔE*
.04
ΔE*
4-14*
mm
Confidently Measure Optical Brightening Agents
With the Ci64, users have flexibility of aperture sizes and the option to add UV LED illumination for accurate color measurement of plastics, textiles and papers that contain optical brightening agents.
Bring Consistency to Measurement Processes
With a Graphical Jobs™ interface and configurable menus, Ci64 users can understand measurement procedures and view data directly from the device. It ensures reliable data collection and statistical process control for consistency across shifts, production lines, and manufacturing facilities.
Simultaneous SPIN/SPEX for Gloss Assessment
Immediately identify variances in color and gloss to ensure accurate color readings or verify visual inspection
Dual Spot Switchable Medium and Small Apertures (4 and 8, or 14mm*)
Provides greater flexibility to measure a wider variety of sample sizes
Software Compatible
Integrates with X-Rite's formulation and quality control software for an end-to-end color solution
What Our Customers Are Saying About Ci64
"Having a reliable portable instrument like the X-Rite Ci64UV that we can use throughout the plant to confirm color accuracy at all stages of production has made a significant difference to our business."
See how the Ci64 fits in your workflow:
Specification
Design/Premedia
Formulation
Production
Quality Control
Specifications
| Battery | Li-ion |
| Battery Life | 1000 measurements (non-UV)
@ 10 sec intervals |
| Calibration | White, Zero, UV* |
| Color Differences | [√/X], Δecmc, Δlab, ΔE00, Δreflectance, ΔE94, ΔXYZ, ΔL*a*b*, ΔYxy, , ΔL*C*h°, ΔL*u*v*, Verbal Difference |
| Color Spaces | Lab, L*a*b*, Reflectance, L*C*h°, Munsell Notation, XYZ, Yxy, L*u*v* |
| Communication Interface | USB 2.0, Bluetooth* |
| Dimensions (length, width, height) | 21.3 cm 9.1 cm 10.9 cm |
| Embedded NetProfiler Support | Yes |
| Humidity | 5% to 85%, non-condensing |
| Illuminants | A, C, D50, D65, F2, F7, F11 & F12 |
| Illumination Spot Size | 20mm or 14mm and 6.5mm |
| Import/Export Format | CSV |
| Instrument Display | Backlit Color Graphic LCD |
| Inter-Instrument Agreement | 0.13 ΔE*ab avg. (8mm) |
| Lamp Life | Approx. 500,000 measurements |
| Languages Supported | English, German, French, Spanish, Italian, Portuguese, Chinese Simplified, Chinese Traditional, Korean, and Japanese |
| Light Source | Gas-filled tungsten lamp
+ UV LEDs* |
| Measurement Cycle Time | ≈ 2 seconds |
| Measurement Geometry | d/8° |
| Measurement Spot | 14mm or 8mm and 4mm |
| Measurement Time | ≈ 2 seconds |
| NetProfiler Support | Embedded |
| Observers | 2° & 10° |
| Operating Temperature Range | 50° to 104°F (10° to 40°C) |
| Package Dimensions (length, width, height) | 51cm, 20cm, 41cm |
| PantoneLIVE Support | Via software |
| Pass / Fail | Yes |
| Photometric Range | 0 to 200% |
| Photometric Resolution | 0.01% |
| Reflectance Aperture(s) | 1 or dual |
| Sample/Measurement | 4000 |
| Sample Preview | Targeting window |
| Shipped Weight | '7kg |
| Short Term Repeatability - White | .04 ΔE*ab on white ceramic |
| Software Development Kit | XDS4 |
| Spectral Analyzer | Blue-enhanced silicon photodiodes |
| Spectral Interval | 10nm |
| Spectral Range | 400nm-700nm |
| Spectral Reporting | 10nm |
| Standard Indices | [√/X], YI1925, WI Taube, ΔWI73, Reflectance, WI98, MI, Δreflectance, ΔWI Berger, WI73, MI6172, ΔYI98, ΔWI Hunter, Gray Scale, WI Berger, Gloss, ΔYI73, ΔWI Stensby, YI98, WI Hunter, ΔYI1925, ΔWI Taube, YI73, WI Stensby, ΔWI98, Averging, 555 Shade Sort |
| Standards | 1000 |
| Storage Temperature Range | '-4° to 122°F (-20° to 50°C) |
| Transform Support | Embedded |
| Voltage | 100-240VAC 50/60Hz,
12VDC @ 2.5A |
| Warranty | 12 months |
| Weight | 1.06 kg |
| What's Included? | Instrument with white calibration standard, black trap, green standard, manual(CD), AC adapter, USB cable, carry case, UV cal standard* |
Support
Parts and Accessories
 |
USB 2.0 Interface Cable Replacement (SE108-USBAB-03) | View Details |
 |

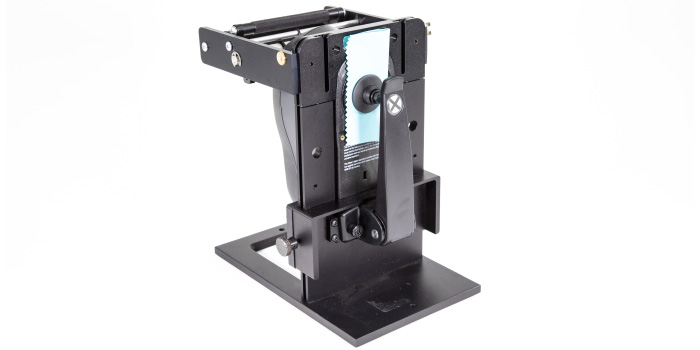

Portable Instrument Stand for Ci60 Series | View Details |
 |
Payment Card Holder | View Details |
 |
Cup and Cylinder Fixture | View Details |
.png) |
Small Target Window Replacement Kit (SP62-41-04-KIT) | View Details |
