Control Lighting for Accurate Color
In manufacturing and quality control across all industries, accurate color is important. When color does not meet specifications, the result is increased cost and time to market, with more rejects and rework. That’s why it is important to view color under controlled lighting conditions. Integrating the Judge QC light booth into a color-critical workflow improves quality control and delivers a rapid ROI.

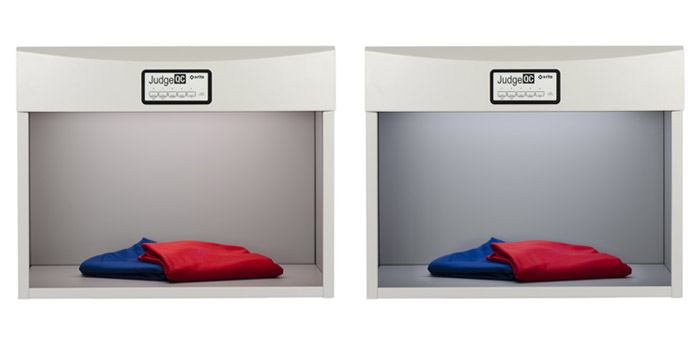

The X-Rite Judge QC is the industry’s most cost effective light booth featuring a robust industrial design. Its metal construction with a powder-coated surface is built for longevity. Its five light sources deliver consistent fluorescent illumination that complies with major international standards, including ISO, ASTM, DIN, ANSI and BSI visual assessment requirements. It has a dedicated D50 light source for print & packaging; a dedicated D65 light source for industrial applications, and a Dual Daylight mode for easy switching between light sources in situations where operators may need to view samples under both lighting conditions. The X-Rite Judge QC light booth offers an economical and effective way to judge color, anywhere color quality needs to be evaluated.
- Achieve better color evaluation of incoming materials with consistent lighting.
- Benefit from robust, industrial construction that will serve you for years to come.
- Always know exactly how functional the Judge QC lamps are with its convenient lamp service indicator.
- Take advantage of multiple options for lamp replacement, designed to be as convenient as possible and ensure maximum up-time.

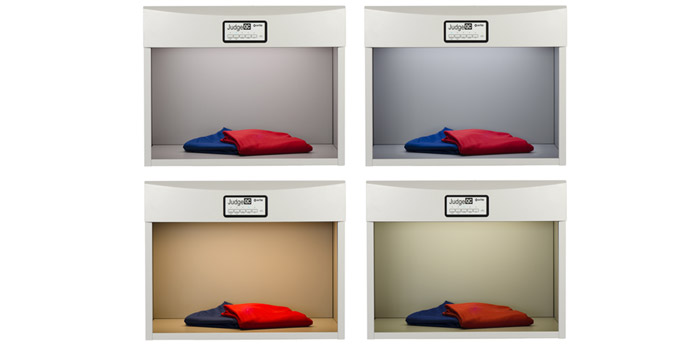

- Check for metamerism a phenomenon that occurs when objects match in one light source but not in another.
The Judge QC comes fully equipped with a UVA lamp for accurate evaluation when samples contain optical brightening agents (OBAs). OBAs are used to achieve a “whiter-than-white” effect on a range of materials, including plastics, paints and coatings and paper.
|Light Level Adjustment||N/A|
|Light Level Sensor||N/A|
|Light Source||D50 or D65, CWF, UVA, CIE A, and one of TL83, TL84, U30, U35|
|Total Light Sources||5|
|Humidity||Rh 0 to 95% max (non-condensing)|
|Operating Temperature Range||32°F to 104°F / 0°C to 40°C|
|Storage Temperature Range||32°F to 104°F / 0°C to 40°C|
|Unit Color||Munsell N7|
|Viewing Area (length, width, height)||25 in x 18.5 in x 15 in / 63.5 cm x 47 cm x 38 cm|
|Dimensions (length, width, height)||27 in x 21.5 in x 21 in / 68.5 cm x 54.5 cm x 53.5 cm|
|Weight||60 lbs / 27 kg|
|Shipped Weight||70 lbs / 31.5 kg|
|Instrument Display||Indicator Light|
|Voltage||100, 115, 127, 230V|
|Warm Up Time||3min (flourescent)|
|Industry Standards||ISO, ASTM, AATCC, and BSI visual assessment requirements|
|Internal Temperature & Humidity Sensor||No|
|UV Metamerism Index||Grade C ( AS DEFINED BY CIE 51.2-1999 TECHNICAL REPORT, "A METHOD FOR ASSESSING THE QUALITY OF DAYLIGHT SIMULATORS FOR COLORIMETRY." )|
|Visible Metamerism Index||Grade B ( AS DEFINED BY CIE 51.2-1999 TECHNICAL REPORT, "A METHOD FOR ASSESSING THE QUALITY OF DAYLIGHT SIMULATORS FOR COLORIMETRY." )|
Parts & Accessories
Featured SupportSee All Support
You Might Also Like

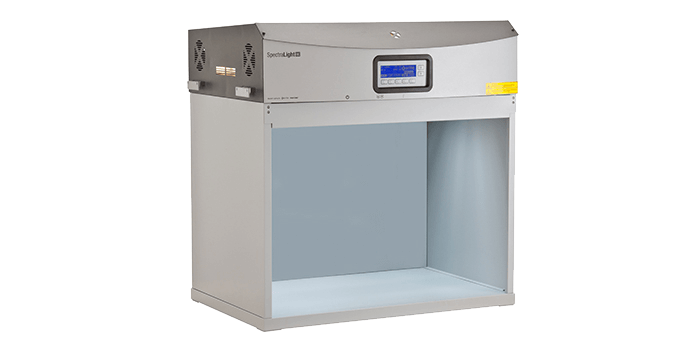

The SpectraLight QC is the light booth of choice for color-critical visual assessment of large and small items under daylight and other lighting conditions; includes 7 light sources.
High Performance QC Spectrophotometer
The Ci64, X-Rite’s most precise handheld sphere spectrophotometer, is available in three models: with simultaneous SPIN/SPEX, correlated gloss, and a UV option.
|Total Light Sources||5||3||7|
|Light Source||D50 or D65, CWF, UVA, CIE A, and one of TL83, TL84, U30, U35||D50 with CWF or D65 with TL84, and CIE A||
Daylight Light Source: D50 or D65
Fluorescent Light Source: CWF, UVA, and two of U30, U35, TL84
Incandescent Light Source: CIE A, ‘Horizon’ a dim incandescent at 2300K
|Light Level Adjustment||N/A||N/A||Digital|
|Warm Up Time||3min (flourescent)||3min (flourescent)||Instant On|
|Industry Standards||ISO, ASTM, AATCC, and BSI visual assessment requirements||ISO, ASTM, AATCC, and BSI visual assessment requirements||
ISO: 3664, 3668, 13076, 23603
CIE: S012/E, 51.2
BSI: BS 950 Pt.2
|Voltage||100, 115, 127, 230V||100, 115, 127, 230V||100, 115, 230V|
|Wattage||65W Max.||50W Max.||1150W|
|Viewing Area (length, width, height)||25 in x 18.5 in x 15 in / 63.5 cm x 47 cm x 38 cm||27 in x 15.6 in x 13.8 in / 68.5 cm x 39.5 cm x 35 cm||35 in x 23 in x 23 in / 90 cm x 58 cm x 58 cm|
|Dimensions (length, width, height)||27 in x 21.5 in x 21 in / 68.5 cm x 54.5 cm x 53.5 cm||27.1 in x 19.7 in x 16.5 in / 69 cm x 50 cm x 42 cm||D 24 x H 27.6 x W 37.2 in / D 610 x H 700 x W 945 mm|
|Safety||ETL Listed||ETL Listed||UL Listed|
