Model #: VS3200

MetaVue™ VS3200

For QC & Formulation

The MetaVue™ VS3200 non-contact imaging spectrophotometer brings breakthrough versatility and accuracy to measurement of wet and dry paints, plastics, cosmetics and small and odd-shaped samples.

Industry-Leading Non-Contact Color Measurement

For industrial applications in coatings, plastics, cosmetics and more, accurate, consistent color is vital. Whether measuring plastic parts, cosmetics, or liquid coatings, this versatile, non-contact imaging spectrophotometer can speed up color formulation, production color checks and quality control operations, reducing waste and rework while shrinking cycle time. This is especially important in environments with frequent production color changes.

The MetaVue VS3200 non-contact imaging spectrophotometer delivers unmatched versatility and color measurement accuracy. Its unique capabilities streamline measurements in both lab and quality control operations. Manufacturers can take advantage of MetaVue non-contact imaging to measure difficult samples such as small and non-planar items as well as liquids, pastes, powders and gels without contaminating the instrument.

Benefits:

  • Features flexibility and ease of use, with aperture sizes ranging from 2mm to 12mm, enabling users to measure a wider variety of samples.
  • Delivers precise digital targeting, allowing the user to quickly and easily select the exact target area being measured.
  • Provides stored image samples, ensuring users have a measurement audit trail and easy retrieval of images for future reference.
  • Integrates into existing workflows, eliminating the need to build new databases. Backward compatible with X-Rite VS450 and 964 data.

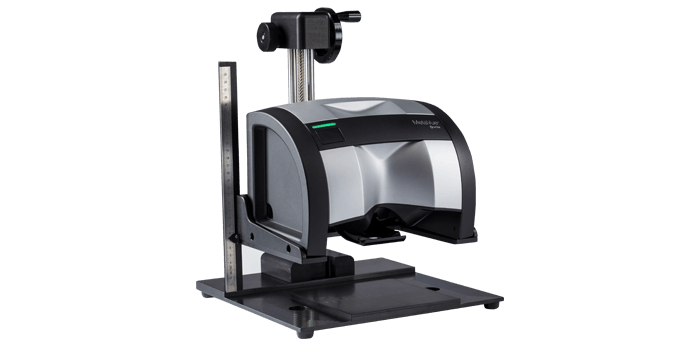

MetaVue VS3200 is intuitive and easy to use with a retractable location-aware sample positioner that improves the user experience and is easy to clean. It integrates with powerful X-Rite Color iMatch and Color iQC software for fast, accurate colorant formulation and efficient quality control operations. Adaptable accessories include an instrument stand to place the instrument three inches above the table with replaceable trays that slide in and out for easy measurement of pastes, powders and liquids; an adjustable stand for accurate measurement of samples with varying thickness; and a benchtop stand that converts the instrument to a benchtop with a sample arm for measuring objects such as plastic parts. Includes green check tile and calibration certificate. Use optional NetProfiler software to verify and optimize instrument performance.

Meet MetaVue™: A Breakthrough Imaging Spectrophotometer

During this free webinar, you’ll learn how the new MetaVue VS3200 delivers unmatched versatility and color measurement accuracy on difficult-to-measure samples, such as small and non-planar items as well as liquids, pastes, and powders.

Upgrade to the New MetaVue™ VS3200

Upgrade to MetaVue™ VS3200, a new non-contact imaging spectrophotometer, and avoid damaging samples during the measurement process.

Specifications

Aperture 2mm to 12mm
Communication Interface USB
Dimensions (length, width, height) 9.75" W x 7.1" H x 7.25" D
Humidity 0% to 85% (non-condensing)
Illumination Spot Size 14 mm
Image Contact During Measurements Non-Contact
Industry Standards ASTM D2244, ASTM E179, ASTM E308, ASTM E1164, CIE 15, DIN 5033 Teil 7, DIN 5036, DIN 6174, ISO 7724, JIS Z 8722

Instrument Display No Display
Inter-Instrument Agreement 0.15 avg CIELAB
Light Source Full spectrum LED
Measurement Cycle Time < 8 seconds
Measurement Geometry 45°/0° imaging spectophotometer
Measurement Spot 2mm to 12mm
Measurement Working Distance 50mm
Package Dimensions (length, width, height) 15.5" W x 11.5" H x 11.25" D
Photometric Range 0% to 150% reflectance
Photometric Resolution 10nm intervals
Reflectance Aperture(s) 2mm to 12mm
Short Term Repeatability - White 0.025 CIELAB
Software Development Kit Yes
Spectral Analyzer DRS filter wheel
Spectral Range 400nm - 700nm @ 10nm intervals
Spectral Reporting 400nm - 700nm @ 10nm intervals
Status Panel Tri-Color LED
Storage Temperature Range -20°C to 70°C
Unit Color Black and Silver
Voltage Universal power supply, 100-240 VAC
Weight 5.55 pounds
