Model #: ci60-xr

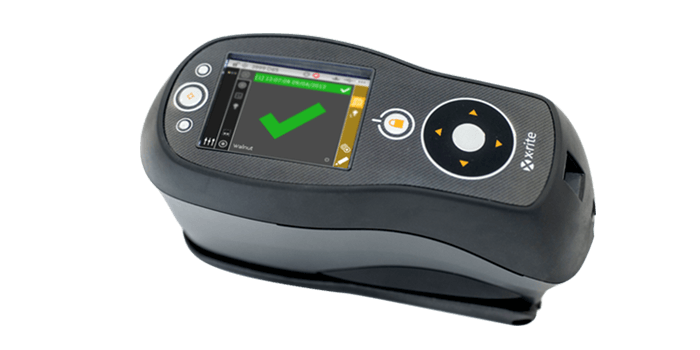

Ci60 Color Spectrophotometer
This entry-level standalone sphere spectrophotometer is ideal for use in QC, receiving, in the field or in the manufacturing plant to ensure color quality.
An Easy and Affordable Color Spectro

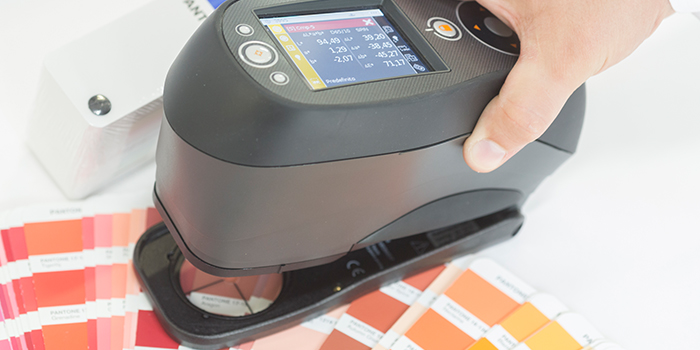

With its 8mm measurement aperture and the ability to output simultaneous SPIN/SPEX measurements, the standalone Ci60 is the most capable and flexible measurement instrument in its class. Carry it with you in production or in the field to quickly take color measurements and compare accuracy against targets. It comes complete with interactive training and eLearning courses, providing users with the knowledge to be productive right out of the box. Ideal for inspecting incoming goods in Receiving. This affordable color measurement instrument replaces error-prone evaluation of color by eye or in uncontrolled lighting conditions.
The Ci60 is completely backward compatible with legacy devices such as the X-Rite SP series with no impact on existing data libraries. It also supports embedded transforms that optimize agreement with benchtop instruments and improve inter-instrument agreement in a supply chain that includes multiple types of spectrophotometers.
- Accurately measure reflective or uneven surfaces on a wide variety of products and packaging types.
- Ensure a color quality audit trail across multiple devices and locations for consistent color and brand integrity in a supply chain.
- Access up to 4,000 reference samples stored in the device for fast access to existing data.
- Increase instrument up-time with optional dual-bay charging to use the Ci60 while charging the second battery.
- Benefit from good inter-instrument agreement for optimum consistency across the supply chain.
The combination of a benchtop spectrophotometer and the Ci60 portable spectrophotometer offers the ultimate in convenience and flexibility with excellent inter-instrument agreement. Bring the full weight of X-Rite’s color measurement and management expertise to bear on even the most complex color workflow with this powerful combination.
|Short Term Repeatability - White||.10 ΔE*ab on white ceramic|
|Inter-Instrument Agreement||0.40 ΔE*ab avg.|
|Illumination Spot Size||14mm|
|Lamp Life||Approx. 500,000 measurements|
|Light Source||Gas-filled tungsten lamp|
|Measurement Cycle Time||≈ 2 seconds|
|Measurement Time||≈ 2 seconds|
|Photometric Range||0 to 200%|
|Spectral Analyzer||Blue-enhanced silicon photodiodes|
|Color Differences||[√/X], Δecmc, Δlab, ΔE00, Δreflectance, ΔE94, ΔXYZ, ΔL*a*b*, ΔYxy, , ΔL*C*h°, ΔL*u*v*, Verbal Difference|
|Color Spaces||Lab, L*a*b*, Reflectance, L*C*h°, Munsell Notation, XYZ, Yxy, L*u*v*|
|Illuminants||A, C, D50, D65, F2, F7, F11 & F12|
|Observers||2° & 10°|
|Standard Indices||[√/X], YI1925, WI Taube, ΔWI73, Reflectance, WI98, MI, Δreflectance, ΔWI Berger, WI73, MI6172, ΔYI98, ΔWI Hunter, Gray Scale, WI Berger, Gloss, ΔYI73, ΔWI Stensby, YI98, WI Hunter, ΔYI1925, ΔWI Taube, YI73, WI Stensby, ΔWI98, Averging, 555 Shade Sort|
|Humidity||5% to 85%, non-condensing|
|Operating Temperature Range||50° to 104°F (10° to 40°C)|
|Storage Temperature Range||'-4° to 122°F (-20° to 50°C)|
|Dimensions (length, width, height)||21.3 cm 9.1 cm 10.9 cm|
|Package Dimensions (length, width, height)||51cm, 20cm, 41cm|
|Instrument Display||Backlit Color Graphic LCD|
|Languages Supported||English, German, French, Spanish, Italian, Portuguese, Chinese Simplified, Chinese Traditional, Korean, and Japanese|
|Software Development Kit||XDS4|
@ 10 sec intervals
12VDC @ 2.5A
|Calibration||White and Zero|
|Pass / Fail||Yes|
|Sample Preview||Targeting window|
|What's Included?||Instrument with white calibration standard, black trap, manual(CD), AC adapter, carry case|
