モデル番号: EO3PAINT
i1 Paint
一般的なサンプル塗料の測定
ハイレベルな、サンプルカラーマッチング
i1 Paint はコストパフォーマンスに優れた、コンパクトな分光測色計です。色見本や塗装された表面から 8 mm の部分を 1 秒以下で測定し、緻密な測定データを出力します。

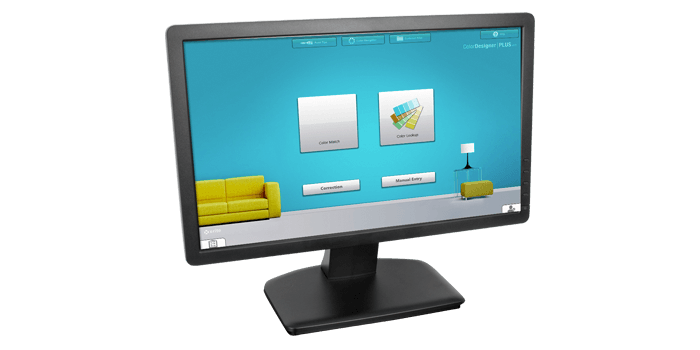

i1 Paint は塗料ソフトウェアの ColorDesigner PLUS(カラーデザイナー・プラス)と併用し、配合値を調色および保存。i1 Paint は目視評価の検証に頼らず、ミスマッチや無駄を排除するため、作業を大幅に短縮します。
利点:
- 31 ポイントの分光解像度で、ハイレベルなカラーマッチングを実行
- 片手で操作が可能な、軽量かつコンパクトなデザイン
- モダンなデザインにより、サンプルのターゲット操作が簡単
- 装置または、ColorDesigner PLUS 塗料ソフトウェアから測定を開始
- 電源コードは USB ケーブル 1 本のみ
仕様
測定アパーチャー | 8 mm (0.31") |
---|---|
インターフェース | USB 1.1 |
製品サイズ(奥行/幅/高さ) | 162 mm x 69 mm x 64 mm (6.4” x 2.7” x 2.5”) |
湿度 | 30 to 85% RH (non-condensing) |
照明スポットサイズ | 12 mm (0.47") |
測定時のサンプル接触 | Contact |
装置ディスプレイ | No display |
器差 | 0.4 ∆E00* average |
光源 | Full spectrum LED |
光学幾何条件 | 45°:0° |
操作温度範囲 | 10°C to 35°C 50°F to 95°F |
光学分解能 | 10 nm intervals |
短期繰り返し精度 - ホワイト | 0.1 ∆E94* |
ソフトウェア開発キット | Yes |
分光分析 | i1® technology with built-in wavelengths check; Holographic diffraction grating with 128-pixel diode array |
分光範囲 | 400 -700 nm @ 10 nm |
分光レポート出力 | 400 -700 nm @ 10 nm |
ステータスパネル | Multi-color LED |
保存温度範囲 | -20° to 50°C -4° to 122°F |
本体カラー | Black/Silver |
電圧 | Power over USB |
製品保証 | 12 months |
重量 | 285 g (10.1 oz) |
同梱物 | i1 Paint spectrophotometer, calibration plate, USB cable |
