Model #: ma68ii
MA68II
Brak produktu
Overview
Specifications
Części i akcesoria
This product has been discontinued. Talk to a color expert today about the MA-5 QC to upgrade your color management solution!
Specifications
Short Term Repeatability - White | 0.10 ∆E* white ceramic |
---|---|
Measurement Geometry | •5 Aspecular measurement angles |
Inter-Instrument Agreement | 0.18 ∆E* avg. on BCRA |
Illumination Spot Size | Approx. 12mm (.5 inch) |
Lamp Life | 750,000 measurements |
Light Source | 45° tungsten halogen |
Measurement Cycle Time | 2 sec |
Measurement Spot | Approx. 12mm (.5 inch) |
Measurement Time | Approx. 2 seconds |
Photometric Range | n/a |
Spectral Interval | 10 nm |
Spectral Range | 400-600 nm |
Color Differences | L*a*b*, L*C*h°, ΔE*; ΔECMC; ΔE DIN6175, ΔE2000 |
Illuminants | A, C, D50, D65, F2, F7, F11 & F1 |
Observers | 10 |
Humidity | 85% Relative Humidity max (non-condensing) |
Operating Temperature Range | 50F to 104F (10C to 40C) |
Storage Temperature Range | -4F to 122F (-20C to 50C) |
Dimensions (length, width, height) | 3.4 x 4.5x 10.6 inches (8,7cm x 11,4cm x 26,9cm) |
Weight | 2.5 lbs 1.13 kgs |
Instrument Display | Text based b/w |
Languages Supported | D,F,Eng,P;Esp,Kor,J,Chinese |
Battery | Ni-Ca |
Industry Standards | ASTM D 2244, E 308, E 1164, E 2194; DIN 5033, 6174, 6175-2; ISO 7724; SAE J1545. |
Calibration | white/black calibration |
Warranty | 1 year |
Części i akcesoria
Featured Support
Materiały wspierające:- Definition of Flop Index
- X-RiteColor Master Will not Save Measurements
- "Invalid Reading" error message
- Cleaning your MA98
Featured Training
Online Training / eLearning: Onsite Training: Seminar: Zobacz wszystkie szkoleniaMoże ci się spodobać również

Spektrofotometr wielokątowy MA-5 QC
Spektrofotometr wielokątowy – 5 kątów pomiarowych
Ten kompaktowy i lekki spektrofotometr jest przeznaczony do konsekwentnej kontroli jakości i pomiaru koloru wykończeń efektowych na hali produkcyjnej, w laboratorium i w terenie.

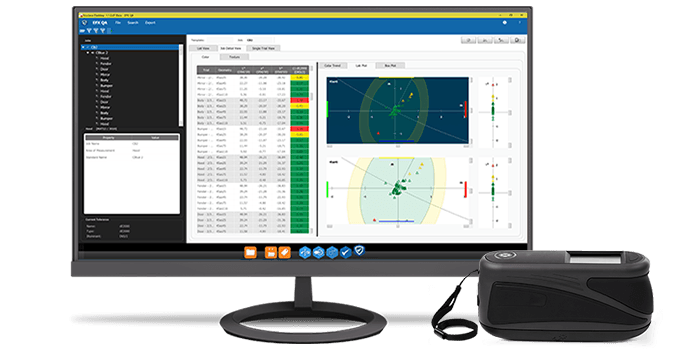

EFX QC Software
