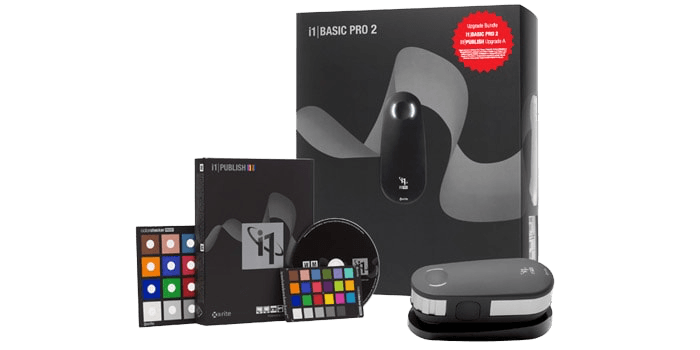

i1Publish Pro 2 Upgrade
Nº de modelo: eo2bas-upga

i1Publish Pro 2 Upgrade

Atualize sua solução de gerenciamento de cores i1 da X-Rite (ou GretagMacbeth) para a funcionalidade completa do i1Publish Pro 2.



Ver detalhes
Request Service
Register Your Product

Downloads

Software

Artigos de suporte

Guias do usuário e manuais

Guias do Usuário

Especificações

Repetibilidade de curto prazo - Branco Reflectance: 0.1 ∆E94*  (D50,2°, mean of 10 measurements every 3 seconds on white)
Geometria de medição 45°/0° ring illumination optics, ISO 13655:2009
Compatibilidade entre instrumentos 0.4 ∆E94* average, 1.0 ∆E94* max. (deviation from X-Rite manufacturing standard at a temperature of 23ºC (73.4ºF) on 12 BCRA tiles (D50, 2º))
Tamanho do ponto de iluminação  3.5 mm (0.14”)
Fonte de luz Gas filled tungsten (illuminant type A) and UV LED
Condições de medição • UV included - ISO 13655:2009 measurement condition M0
• D50 - ISO 13655:2009 measurement condition M1
• UV excluded Filter - ISO 13655:2009 measurement condition M2
Frequência de medição no modo de digitalização 200 measurements per second
Espessura mínima da mídia 3 mm (0.12”) on backup board
Tamanho da amostra Minimal Patch Size in Scanning Mode: 7 x 10 mm (0.28” x 0.39”) (Width x Height) with sensor ruler 10 x 10 mm (0.39” x 0.39”) (Width x Height) without sensor ruler
Faixa fotométrica 10nm; Sampling interval 3.5nm
Analisador espectral i1® technology with built-in wavelengths check; Holographic diffraction grating with 128-pixel diode array
Faixa do espectro 380 - 730 nm
Relatório do espectro 380 ... 730 nm in 10 nm steps
Formato de perfil suportado ICC
Abertura Measurement aperture: 4.5 mm (0.18”) diameter (effective measurement aperture during scanning is depending on the patch size and measurement speed)
Cor da unidade Silver/Black
Dimensões (comprimento, largura, altura) i1Pro device: 155 mm x 66 mm x 67 mm (6.1” x 2.6” x 2.6”)
i1 Ruler: 337 mm x 102 mm (13.3” x 4.0”)
i1 Backup Board: 355 mm x 265 mm (14.0” x 10.4”) folded or 355 mm x 400 mm (14.0” x 15.7”) unfolded
Peso i1Pro device: 245 g (8.6 oz)
Dimensões da embalagem (comprimento, largura, altura) 13.7" x 6.1" x 17.0" / 348 mm x 155 mm x 434 mm
Peso enviado 9.942 lbs / 4.510 kg
Interface de comunicação USB 1.1
Nível de experiência Intermediate to Advanced
Idiomas suportados Chinese (Simplified), English, French, German, Italian, Japanese, Korean, Portuguese, Spanish
Modos de software Basic & Advanced
Experiência do usuário Choose between a ‘basic’, wizard-driven interface or an ‘advanced’, user-driven interface for highest level professional results
Calibração Manual on external ceramic white reference
Fundo de medição white, ISO 13655:2009; for measurements on backup board
Compatibilidade com dispositivos móveis iOS
Compensação de branqueador óptico (OBC – Optical Brightener Compensation) Optical Brightener Compensation (OBC) with i1Profiler software
Suporte específico para scanner • ColorChecker Classic and ColorChecker Digital SG (X-Rite)
• Reflective IT 8.7/2 (X-Rite, LaserSoft and Wolf Faust)
• Transmissive 4x5 and 35mm IT 8.7/1 (X-Rite, Kodak, LaserSoft and Wolf Faust)
Garantia Twelve (12) months from the date of sale, unless different local regulations apply. Product registration is required to receive X-Rite technical support during the warranty period. Registration can occur directly through the software, on our website, or via phone. Users are encouraged to register their product within the first 30 days of use.
O que está incluído? i1Pro 2 spectrophotometer (measurement device), calibration plate, ambient light measurement head, monitor holder, positioning target, scanning ruler, backup board, USB cable, i1Profiler v1.x software for monitors, projectors, scanners and RGB/CMYK+ printers, ColorChecker Camera Calibration software, PANTONE Color Manager software, ColorChecker Classic target [mini], ColorChecker Proof target and soft-sided storage case. Free ColorTRUE mobile app download from iTunes® App Store.
Macintosh MacOS X 10.13x, 10.14x  or 10.15x  (with latest upgrades installed)
Windows Windows 7, 8, 8.1, 10 (with latest Service Pack installed)
Espaço disponível em disco 2GB
Conectividade Powered USB port"Powered USB port

WINDOWS: Network adaptor installed and driver loaded"
Resolução de tela 1024x768 pixels or higher
Conexão à Internet Required for software install, download and automatic update
Memória 2GB
Número de telas suportadas por estação de trabalho 4
Drive óptico DVD Drive or Internet Connection
Processador MAC: Intel® Core 2 Duo CPU or better; WINDOWS: Intel® Core 2 Duo or AMD Athlon™ XP or better
Segurança User must have Administrator rights to install and uninstall the application
Cartão de vídeo MAC: Latest drivers for video card installed; WINDOWS: Latest drivers for video card installed, dual display support requires either 2 video cards or a dual head video card that supports dual video LUTs being loaded
Dispositivos iOS compatíveis Compatible with Free ColorTRUE Mobile App:
• iPad 2, 3rd gen, 4th gen, Air, Mini, & Mini 2nd gen running iOS 7.x or later
• iPhone 4, 4S, 5, 5c, & 5s running iOS 7.x or later
• iPod Touch running iOS 7.x or later
