N. modello : eo2bas-upga

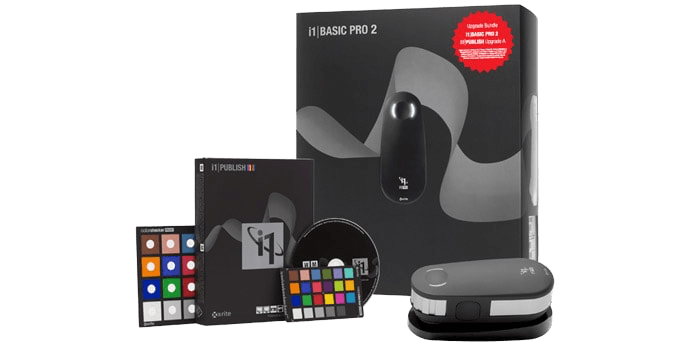

i1Publish Pro 2 - aggiornamenti

$2,265

Aggiornate la vostra attuale soluzione di gestione del colore i1 di X-Rite (o GretagMacbeth) con le funzionalità complete di i1Publish Pro 2.




Articoli sull’assistenza


Guide e manuali dell'utente

Istruzioni


Specifiche

Ripetibilità a breve termine - Bianco Reflectance: 0.1 ∆E94*  (D50,2°, mean of 10 measurements every 3 seconds on white)
Geometria di misurazione 45°/0° ring illumination optics, ISO 13655:2009
Compatibilità tra strumenti 0.4 ∆E94* average, 1.0 ∆E94* max. (deviation from X-Rite manufacturing standard at a temperature of 23ºC (73.4ºF) on 12 BCRA tiles (D50, 2º))
Dimensioni spot di illuminazione  3.5 mm (0.14”)
Sorgente luminosa Gas filled tungsten (illuminant type A) and UV LED
Condizioni di misurazione • UV included - ISO 13655:2009 measurement condition M0
• D50 - ISO 13655:2009 measurement condition M1
• UV excluded Filter - ISO 13655:2009 measurement condition M2
Frequenza di misurazione in modalità scansione 200 measurements per second
Spessore minimo del supporto 3 mm (0.12”) on backup board
Dimensione campione Minimal Patch Size in Scanning Mode: 7 x 10 mm (0.28” x 0.39”) (Width x Height) with sensor ruler 10 x 10 mm (0.39” x 0.39”) (Width x Height) without sensor ruler
Campo fotometrico 10nm; Sampling interval 3.5nm
Analizzatore di spettro i1® technology with built-in wavelengths check; Holographic diffraction grating with 128-pixel diode array
Gamma spettrale 380 - 730 nm
Reporting di spettro 380 ... 730 nm in 10 nm steps
Formato profilo supportato ICC
Apertura Measurement aperture: 4.5 mm (0.18”) diameter (effective measurement aperture during scanning is depending on the patch size and measurement speed)
Colore unità Silver/Black
Dimensioni (lunghezza, larghezza, altezza) i1Pro device: 155 mm x 66 mm x 67 mm (6.1” x 2.6” x 2.6”)
i1 Ruler: 337 mm x 102 mm (13.3” x 4.0”)
i1 Backup Board: 355 mm x 265 mm (14.0” x 10.4”) folded or 355 mm x 400 mm (14.0” x 15.7”) unfolded
Peso i1Pro device: 245 g (8.6 oz)
Dimensioni prodotto (lunghezza, larghezza, altezza) 13.7" x 6.1" x 17.0" / 348 mm x 155 mm x 434 mm
Peso con imballaggio 9.942 lbs / 4.510 kg
Interfaccia di comunicazione USB 1.1
Livello di esperienza Intermediate to Advanced
Lingue supportate Chinese (Simplified), English, French, German, Italian, Japanese, Korean, Portuguese, Spanish
Modalità software Basic & Advanced
Esperienza utente Choose between a ‘basic’, wizard-driven interface or an ‘advanced’, user-driven interface for highest level professional results
Calibrazione Manual on external ceramic white reference
Sfondo di misurazione white, ISO 13655:2009; for measurements on backup board
Compatibilità dispositivi mobili iOS
Compensazione di sbiancante ottico (OBC) Optical Brightener Compensation (OBC) with i1Profiler software
Supporto target per scanner • ColorChecker Classic and ColorChecker Digital SG (X-Rite)
• Reflective IT 8.7/2 (X-Rite, LaserSoft and Wolf Faust)
• Transmissive 4x5 and 35mm IT 8.7/1 (X-Rite, Kodak, LaserSoft and Wolf Faust)
Garanzia Twelve (12) months from the date of sale, unless different local regulations apply. Product registration is required to receive X-Rite technical support during the warranty period. Registration can occur directly through the software, on our website, or via phone. Users are encouraged to register their product within the first 30 days of use.
Contenuto i1Pro 2 spectrophotometer (measurement device), calibration plate, ambient light measurement head, monitor holder, positioning target, scanning ruler, backup board, USB cable, i1Profiler v1.x software for monitors, projectors, scanners and RGB/CMYK+ printers, ColorChecker Camera Calibration software, PANTONE Color Manager software, ColorChecker Classic target [mini], ColorChecker Proof target and soft-sided storage case. Free ColorTRUE mobile app download from iTunes® App Store.
Macintosh MacOS X 10.13x, 10.14x  or 10.15x  (with latest upgrades installed)
Windows Windows 7, 8, 8.1, 10 (with latest Service Pack installed)
Spazio su disco disponibile 2GB
Connettività Powered USB port"Powered USB port

WINDOWS: Network adaptor installed and driver loaded"
Risoluzione display 1024x768 pixels or higher
Connessione Internet Required for software install, download and automatic update
Memoria 2GB
Numero di display supportati per workstation 4
Drive ottico DVD Drive or Internet Connection
Processore MAC: Intel® Core 2 Duo CPU or better; WINDOWS: Intel® Core 2 Duo or AMD Athlon™ XP or better
Sicurezza User must have Administrator rights to install and uninstall the application
Scheda video MAC: Latest drivers for video card installed; WINDOWS: Latest drivers for video card installed, dual display support requires either 2 video cards or a dual head video card that supports dual video LUTs being loaded
Dispositivi iOS compatibili Compatible with Free ColorTRUE Mobile App:
• iPad 2, 3rd gen, 4th gen, Air, Mini, & Mini 2nd gen running iOS 7.x or later
• iPhone 4, 4S, 5, 5c, & 5s running iOS 7.x or later
• iPod Touch running iOS 7.x or later
