Model #: capsure
For Color Identification
Portable Color Identification Tool
CAPSURE accurately reads color on a wide range of surfaces and materials to find the closest match in related color libraries. Ideal when searching for extra inspiration, CAPSURE can provide color recommendations to aid in the design process with Harmony Palettes, Similar Colors and Color Navigation.
CAPSURE can also isolate colors within a multi-colored pattern to develop matching or complementary color palettes. It is the ideal tool for professionals in fashion, home, interiors, and graphic design.
Quality Color Matches on Common Samples:
- Automatically identify dominant shades from a detailed or multi-colored sample.
- Ensures convenience and portability due to the lightweight form factor and USB rechargeable battery.
- Stores up to 100 measurements and features a built-in microphone that creates an audio record for each color.
- Proprietary, one-click color identification system can accurately identify color components and quicklycross-check the best matches between color collections.
- Recalls saved colors to create custom palettes and merge choices with popular design applications.
|Short Term Repeatability - White||Typical 0.2 DE94|
|Short Term Repeatability - Blue||NA|
|Measurement Geometry||45°/0° Image Capture|
|Illumination Colors||25 LED (8 x visible wavelengths, 1 x UV)|
|Illumination Spot Size||9mm|
|Image Contact During Measurements||Video Preview|
|Lamp Life||>10 million flashes|
|Light Source||Independent tri directional 25 LED (8 x visible wavelengths, 1 x|
|Measurement Cycle Time||1.8 Seconds|
|Measurement Time||1.8 Seconds|
|Spectral Analyzer||Monochrome camera|
|Operating Temperature Range||0C to 40C|
|Storage Temperature Range||'-20C to 60C|
|Dimensions (length, width, height)||144x52x40mm|
|Package Dimensions (length, width, height)||180x184x60.5mm|
|Shipped Weight||415 grams|
|Communication Interface||USB or USB & Blue tooth|
|Instrument Display||45mm Color TFT|
|Languages Supported||English, French, German, Italian, Spanish, Swedish, Chinese Simplified, Chinese Traditional, Japanese, Korean, Turkish, Danish, Norwegian, Dutch, French Canadian, Greek, Portugues, Russian, Finnish|
|Software Development Kit||Bluetooth iOS, Androis and Windows|
|Battery Life||Typical performance for continuous measurement operation 5 hours, 100h standby.|
|Standards||Approx 1,000 dependent on format|
|Calibration||Integrated white calibration slider|
|Embedded NetProfiler Support||NA|
|Mobile Device Compatibility||Bluetooth iOS and Android devices|
|Optical Brigtener Compensation (OBC)||Yes|
|Pass / Fail||NA|
|Sample Preview||Yes - Video Preview|
Protective carry pouch
Lanyard wrist strap
Quick Start guide
USB Cable 1.5M
Application and Documentation CD
|Windows||WIN7, WIN8, WIN10|
- CAPSURE_Sync v22.214.171.124 (PC Only)
- CAPSURE_Sync v1.4.1 (MAC Only)
- CAPSURE Fandeck Creator v0.0.1.140
- CAPSURE Sync v1.4
- CAPSURE Sync v1.3
- How to Synchronize CAPSURE with CAPSURE Sync
- Setting up CAPSURE and ColorDesigner PLUS connectivity
- Activation Failure in Capsure Palette Software
- Verifying RM200QC Sync will work on my system
- Reinstalling CAPSURE Sync USB Drivers on Windows Systems

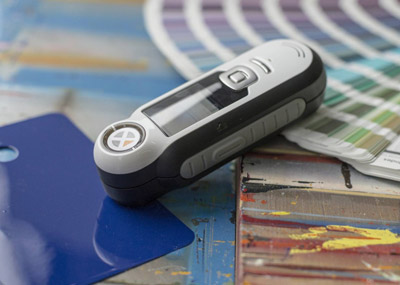

BBC Paints offers some insight of how they maintain a market leading position in a fast growing color business

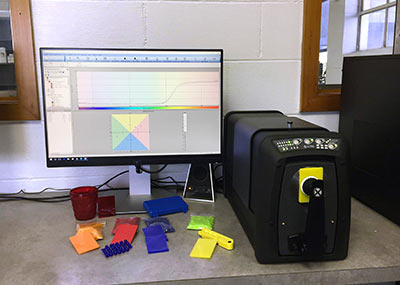

X-Rite solutions were a critical element that enabled Plastic Resins to efficiently start up operations.
