모델 번호 MOLERX30

ColorXRA 45 Lab

New

For Paper and Textile Color Measurement

견적 요청
  • Measures base color, opacity, and OBAs to ensure industry compliance, including M1
  • Standardized 45:0 measurement geometry correlates with the printing industry
  • Connects with an inline device for real-time lab data

Make Quick and Accurate Color Decisions in the Lab

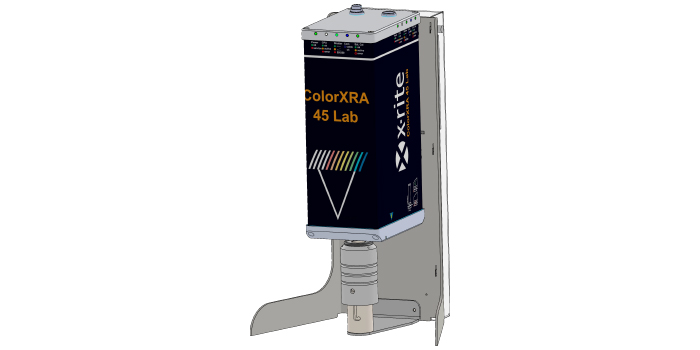

The ColorXRA 45 Lab is a compact, 45:0 benchtop spectrophotometer to measure color on paper and high visibility textiles. It offers an excellent spectral range from 330 nm to 730 nm, a spectral resolution of 1 nm, and an adjustable UV component to evaluate OBAs. When paired with the ColorXRA 45 spectrophotometer and ESWin Quality Control software, the ColorXRA 45 Lab provides superior consistency by matching the measured data with inline measurements.

0.3 dE
Inter-Instrument Agreement
1.0 nm
Spectral Resolution
45:0
Device Geometry
Paper Precise Measurement
Precisely Measures Samples With and Without Optical Brighteners

The ColorXRA 45 Lab benchtop spectrophotometer offers 45:0 geometry, temperature and dirt detection, and adjustable UV light for color measurement in laboratory environments. It accurately measures paper base color, opacity, and Optical Brightening Agents to ensure compliance with the latest industry standards, including M1.

Safety Apparel
Aligns With Industry Standards

The 45:0 geometry of the ColorXRA 45 Lab correlates with visual color assessment and closely mimics human color perception. The built-in Xenon flash lamp is adapted to the D65 standard to measure with and without UV. ColorXRA Lab is aligned with printing industry standards so all members of the supply chain can speak the same color language. For textiles, it ensures color measurements on high visibility clothing remain within DIN EN 471 and ANSI/ISEA 10 tolerances.

Standards
Objective Color Evaluation According to Recognized International Standards

Records and stores all color quality documentation for future evaluation according to ISO 9001.

Stability
Excellent Short- and Long-Term Stability

Uses real dual beam measurement and automatic wavelength calibration to ensure exceptional measurement accuracy and stability.

Connectivity
Automatic Connectivity with Inline Devices

Connects with the ColorXRA 45 inline device to display lab data in a trend graph of the inline system and allow automated corrections if necessary.

ColorXRA 45 Lab
Design/Premedia
Specification
Formulation
Production
Quality Control
