N. modello
CT2100
CT2100 Countertop Spectrophotometer
New
Per la creazione di materiali virtuali e formati di file
- Robust countertop design reduces risk of damage, loss, or theft.
- Measures common samples 8mm or larger in just one second.
- Provides easy status updates via an indicator light.
Premessa
Short Term White Repeatability
Device Geometry
Inter-Instrument Agreement
![CT2100]()
![CT2100]()
![CT2100]()
Specifiche
9.2
inch
![CT2100]()
7.2
inch
9.2
inch
7.2
inch
Supporto
Risorse
Affordable & Rugged Countertop

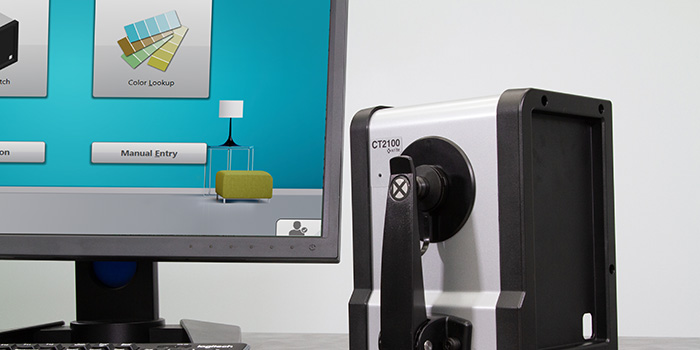

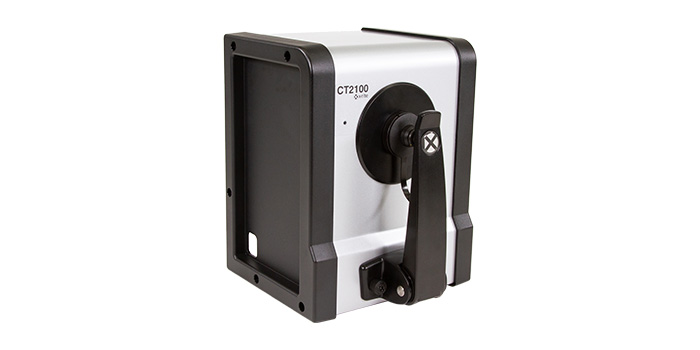

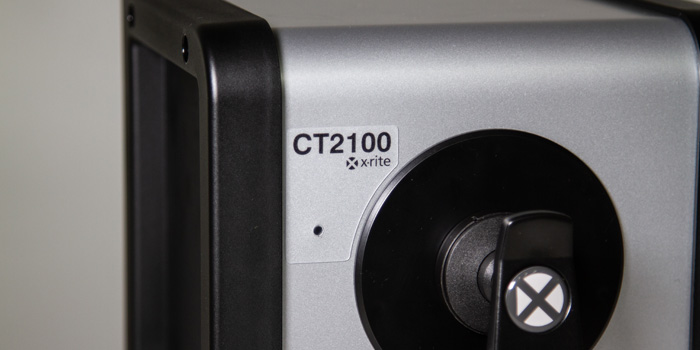

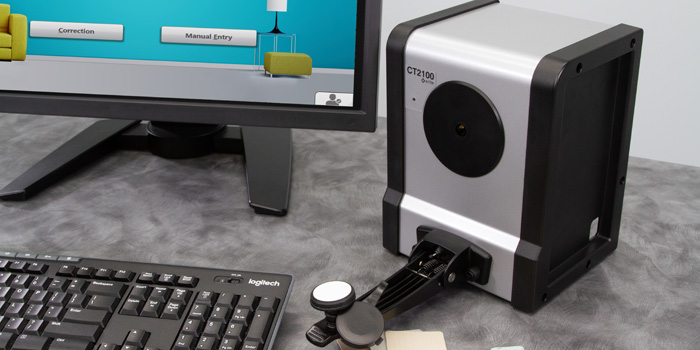

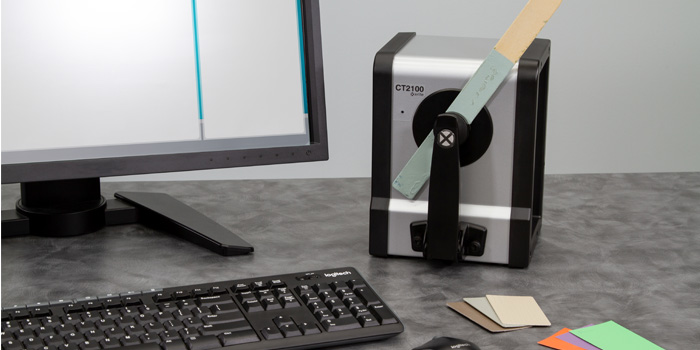

The CT2100 spectrophotometer offers reliable color matching for retail paint environments. Designed for common samples 8mm or larger, the CT2100 measures samples in just one second and provides easy status updates via an indicator light. The embedded calibration tile means there are no loose parts and the protective cap on the tile helps prevent wet paint contamination. CT2100 integrates with ColorDesigner PLUS paint software to quickly formulate and store custom paint recipes.
0.10
DE* max
45°/0°
0.30
DE* avg
Robustness
Built for durability, the robust countertop design helps prevent damage, loss, or theft. Additionally, the embedded calibration tile is equipped with a protective cap to reduce the risk of wet paint contamination, ensuring consistent performance in demanding retail environments.
Quality Color Matches
The CT2100 utilizes continuous ring illumination to ensure consistent and accurate color readings every time. With 31-point spectral resolution, it achieves quality color matches. It accommodates the standard sample sizes found in retail paint environments, making it an ideal tool for consistent and reliable color matching.
Intuitive Design
The CT2100 streamlines the color matching process by providing instant feedback through a status indicator light, while delivering measurements in just one second. Its design minimizes daily upkeep, requiring only a single white calibration step and a single USB cable.
Comprehensive Solution
Integrates with X-Rite ColorDesigner PLUS software for fast accurate paint recipe formulation and custom receipt storage for repeat customers.
Robust Paint Database
Supports nearly every paint brand database in North America for seamless integration into independent and small paint stores.
Customizable Bundled Options

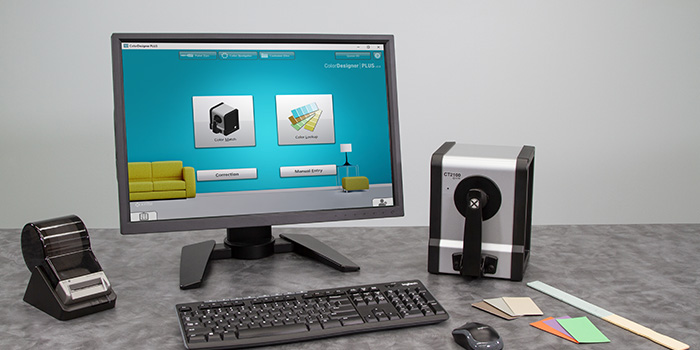

Cost-effective bundle, W50 Series, includes the CT2100, ColorDesigner PLUS software, a computer, monitor, and label printer.
See how the CT2100 fits in your workflow
Design e Premedia
Sviluppo / Formulazione
Produzione
Controllo Qualità
Specificazione
Specifiche
| Software di terze parti supportato | ColorDesigner PLUS |
| Apertura | 8 mm |
| Batteria | None |
| Durata batteria | N/A |
| Calibrazione | White calibration |
| Interfaccia di comunicazione | USB |
| Connettività | for things like USB ports, bluetooth, etc. |
| Dimensioni (lunghezza, larghezza, altezza) | 8.0" D x 7.2" W x 9.2" H |
| Umidità | 0-80% non-condensing |
| Dimensioni spot di illuminazione | 11 mm |
| Formato di esportazione/importazione | None |
| Display strumento | None |
| Compatibilità tra strumenti | 0.30 DE* average (BCRA) |
| Lingue supportate | N/A |
| Sorgente luminosa | LED |
| Geometria di misurazione | 45/0 |
| Spot misurazione | 8 mm |
| Tempo di misurazione | 1 second |
| Supporto NetProfiler | No |
| Numero di display supportati per workstation | Used for i1 products that only support up to 4. |
| Intervallo temperatura operativa | 10°C - 35°C |
| Dimensioni prodotto (lunghezza, larghezza, altezza) | Required for shipment |
| Supporto target per scanner | For i1 products |
| Sicurezza | Does the user need admin rights to use this. |
| Ripetibilità a breve termine - Bianco | 0.10 DE* max |
| Kit di sviluppo software | SDK is available |
| Gamma spettrale | 400-700 nm @ 10 nm |
| Reporting di spettro | 400-700 nm @ 10 nm |
| Pannello di stato | Multi-color LED status indicator |
| Intervallo temperatura di immagazzinamento | 10°C - 50°C |
| Colore unità | Silver and black |
| Scheda video | For things like dual display, etc. |
| Garanzia | 1 year |
| Peso | 7.25 pounds |
| Contenuto | CT2100 instrument, USB cable, Quick Start Guide |
