Contato com Vendas: +800 700 300 01

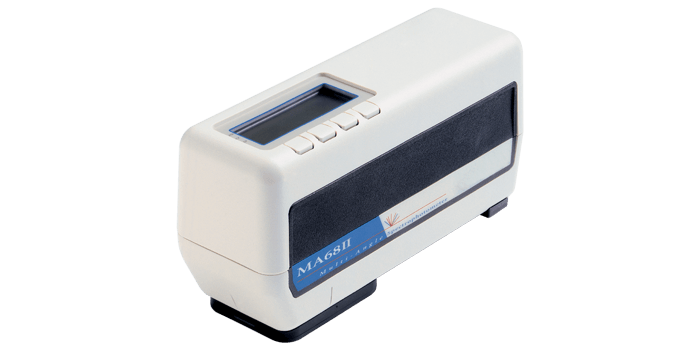

Nº de modelo: ma68ii

MA68II

Fora de produção

Ver atualização

Request Service

Downloads

Artigos de suporte

Mostrar maisMostrar menos

Guias do usuário e manuais

Guias do Usuário

MA68II Multi-angle Spectrophotometer Manual

Especificações

Repetibilidade de curto prazo - Branco	0.10 ∆E* white ceramic
Geometria de medição	•5 Aspecular measurement angles
Compatibilidade entre instrumentos	0.18 ∆E* avg. on BCRA
Tamanho do ponto de iluminação	Approx. 12mm (.5 inch)
Vida útil da lâmpada	750,000 measurements
Fonte de luz	45° tungsten halogen
Tempo do ciclo de medição	2 sec
Ponto de medição	Approx. 12mm (.5 inch)
Tempo de medição	Approx. 2 seconds
Faixa fotométrica	n/a
Intervalo espectral	10 nm
Faixa do espectro	400-600 nm
Diferenças de cor	Lab, LCh°, ΔE; ΔECMC; ΔE DIN6175, ΔE2000
Iluminantes	A, C, D50, D65, F2, F7, F11 & F1
Observadores	10
Umidade	85% Relative Humidity max (non-condensing)
Faixa de temperatura de operação	50F to 104F (10C to 40C)
Faixa de temperatura de armazenamento	-4F to 122F (-20C to 50C)
Dimensões (comprimento, largura, altura)	3.4 x 4.5x 10.6 inches (8,7cm x 11,4cm x 26,9cm)
Peso	2.5 lbs 1.13 kgs
Tela do instrumento	Text based b/w
Idiomas suportados	D,F,Eng,P;Esp,Kor,J,Chinese
Bateria	Ni-Ca
Padrões da indústria	ASTM D 2244, E 308, E 1164, E 2194; DIN 5033, 6174, 6175-2; ISO 7724; SAE J1545.
Calibração	white/black calibration
Garantia	1 year

Mostrar mais Mostrar menos

Dúvidas? Precisa de um orçamento? Contato. +800 700 300 01

Perguntas técnicas? Contatar suporte. +800 700 300 01
