Nº de modelo: icp2

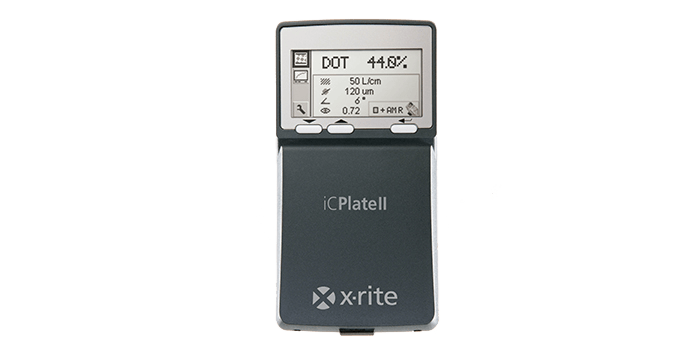

iCPlate2

Fora de produção

Request Service

Register Your Product

Downloads

Software

Capture Tool v1.0.1

Firmware

iCPlate2 Firmware v5_03h

Artigos de suporte

Mostrar maisMostrar menos

Guias do usuário e manuais

Guias do Usuário

Artigos técnicos e Notas do aplicativo

Artigos técnicos

Especificações

Repetibilidade de curto prazo - Branco	± 0.5% (typ.)
Fonte de luz	iCPlate2 X: 1 LED (R) iCPlate2 XT: 3 LED (RGB)
Tempo de medição	3 sec (typ.)
Faixa de regras da tela (AM)	26 – 147, 65 – 380 lpi
Abertura	ca. 1.3mm x 1mm
Umidade	10% to 80% non-condensing
Faixa de temperatura de operação	10°C to 40°C 50°F to 104°F
Faixa de temperatura de armazenamento	-20°C to 70°C - 4°F to 158°F
Dimensões (comprimento, largura, altura)	4.8 cm x 7.3 cm x 14.5 cm 1.9" x 2.9" x 5.7"
Peso	400 g 0.88 lbs.
Interface de comunicação	RS-232 serial interface
Tela do instrumento	160 x 80 Pixels, 4 gray scales
Idiomas suportados	Icon-based
Modos de software	iCPlate2 X, iCPlate2 XT
Bateria	2 Batteries 1.5 V (Size AA)
Duração da bateria	30,000 (typ.)
Warm Up Time	None
Garantia	1 year
O que está incluído?	iCPlate2 Target, quick start guide, data cable, device certificate
