Model #: EO3AST
i1iO for i1Pro 3 & i1Pro 3 Plus
$3,080
Automation for the Highest Level of Color Accuracy.
Manually reading test charts for profiling and color validation is time-consuming and leaves room for human error. The new model of i1iO has been developed to accommodate the i1Pro 3 and the i1Pro 3 Plus, providing a simple way to enhance functionality, versatility, and speed up the measurement process.
Designed to accommodate the i1Pro 3 and i1Pro 3 Plus, this enhanced model features additional functionality and versatility, transmissive profiling capabilities, and faster measurements.Simple. Quick. Versatile.
- Measures reflective test charts on a variety of substrates up to 10 mm thick, including thin polybag material, ceramics, and textiles.
- Reads more than 500 patches per minute in scanning mode under the M0 measurement condition to quickly create custom profiles.
- Offers ultimate flexibility through hands-free automation and ease-of-use.
- Supports automated transmission profiling with i1Pro 3 Plus for backlit film and materials used in signage.
- Provides more accurate and consistent profiles than created by hand.
Integration with i1Pro 3 Products
The i1iO enables hands-free chart reading for automated color profiling. Combined with the i1Pro 3 & i1Pro 3 Plus, the i1iO optimizes automated file creation allowing for a reduction of wasted time and materials during production.
Specifications
| Available Disk Space | 2GB |
|---|---|
| Calibration | Automatic on Integrated Calibration Reference |
| Communication Interface | USB 1.1 |
| Connectivity | Powered USB port |
| Dimensions (length, width, height) | 510 x 460 x 170 mm, 20 x 18.1 x 6.7 (Width x Depth x Height) |
| Experience Level | Intermediate to Advanced |
| Languages Supported | Chinese (Simplified), English, French, German, Italian, Japanese, Korean, Portuguese, Spanish |
| Macintosh | MacOS X 10.13x, 10.14x or 10.15x (with latest upgrades installed) |
| Measurement Background | White |
| Media Thickness | Max. 10mm Max. 33mm with optional Z Axis Spacer |
| Package Dimensions (length, width, height) | 254.0 mm X 609.6 mm X 584.2 mm |
| Patch Size | Minimal Patch Size in Scanning Mode: 16 x 16 mm (0.63” x 0.63”) with i1Pro3 Plus |
| Scanning Area | Positioning Area: 32 x 23 cm, 12.6” x 9” (Width x Height) |
| Scanning Capability | Yes |
| Shipped Weight | 6.849 kg (15.10 lbs.) |
| Single Pass Scan | Yes |
| Software Development Kit | Available for OEM customers |
| Software Modes | Basic & Advanced |
| Unit Color | Black/Silver |
| User Experience | Choose between a ‘basic’, wizard-driven interface or an ‘advanced’, user-driven interface for highest level professional results |
| Voltage | 100 to 240 VAC, 50 / 60 Hz |
| Warranty | Twelve (12) months from the date of sale, unless different local regulations apply. Product registration is required to receive X-Rite technical support during the warranty period. Registration can occur directly through the software, on our website, or via phone. Users are encouraged to register their product within the first 30 days of use. |
| Weight | 4.5 kg, 9.9 lb (without i1 Pro device) |
| What's Included? | i1iO table; Replacement Glider Ring; Auto rating power supply 100 – 240 VAC, 50/60Hz; Main power cable; USB cable; Quick Start Guide |
| Windows | Windows 8.1, 10 (with latest Service Pack installed) |
Featured Support
Software: See All SupportFeatured Training
Online Training / eLearning: Onsite Training: Seminar: See All TrainingYou Might Also Like
i1Publish Pro 3 Plus
Quickly and easily create custom profiles for cameras, monitors, digital projectors, scanners, and printers and ensure color accuracy from capture to output with the i1Publish Pro 3 Plus.
$2,999
i1Photo Pro 3 Plus
Maximize your profitability, efficiency and accuracy with the i1Photo Pro 3 Plus.
$2,199

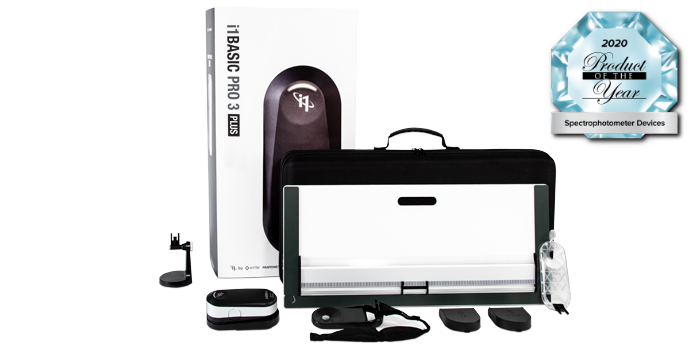

i1Basic Pro 3 Plus
