Model #: nghxr

eXact

Spectrophotometer

Offered in both Standard and Advanced models, the eXact combines industry-leading functionality with an easy-to-use interface to deliver the best solution for controlling, managing, and communicating color across the entire color workflow.

Setting the Standard for Color Management

The eXact spectrophotometer is offered in two configurations: Standard and Advanced. The eXact Standard is for press operators who want to ensure accurate printing of both CMYK and spot colors. The eXact Advanced model was designed for ink labs and quality control labs to provide enhanced functionality of quality control features, sample measurements, and the capability to store different user profiles.

The eXact is a unique combination of hardware and software programming to help operations get color right the first time – every time.

Benefits:

  • Best in Spot Color Support
    Fully integrated Pantone spectral data, support of the PantoneLIVE color digital workflow, and ink key adjustment recommendations for spot colors and CMYK.
  • Accurate and Consistent
    The advanced spectral engine and integrated white calibration ensures the highest accuracy and consistency with other instruments – all the time. Pair with NetProfiler to ensure accuracy and consistency across multiple measurement devices within a single facility or across geographies.
  • Configurable
    eXact allows the user to easily configure and control the instrument to the specific standards of a selected job.
  • Efficient
    Both the eXact Standard and Advanced are designed and engineered to bring efficiency to your operation with the ability to do simultaneous polarized and unpolarized measurements (M0, M2 and M3).
  • Expandable
    With a comprehensive portfolio of products, the eXact family integrates with many of X-Rite solutions to ensure true color consistency across the entire workflow.



Need More Information?
Get on the Path to Brand Color Consistency

Save on a quick start bundle and get started down the path to a data-driven color and print quality program, so you can see improved color quality on your brand packaging quickly and easily.

Establishing Flexo Process Control

How do you ensure consistent color in your flexographic printing process? These ten tips will help you take achieve predictable color with process control.

Specifications

Short Term Repeatability - White 0.05 ΔEab (standard deviation) White BCRA (Error compared to mean value of 10 measurements every 5 seconds)
Short Term Repeatability - Density '+/- 0.01 D for CMYK (Status E or Status T measurements, maximum error compared to mean value of 10 measurements every 5 seconds at 2.0 D except for M3 Yellow at 1.7 D)
Measurement Geometry 45°/0° ring illumination optics, ISO 5-4:2009(E)
Inter-Instrument Agreement Average: 0.25 ΔEab,
Max: 0.45 ΔEab (for M3: 0.55 ΔEab)
(Measurements using X-Rite manufacturing standards at a temperature of 23°C +/- 1°C, 40-60% RH for all measurement modes on 12 BCRA color tiles and a white ceramic reference (D50, 2°))
Light Source Gas filled tungsten (illuminant type A) and UV LED
Measurement Conditions M0, M1 (part 1) , M2, M3
Measurement Time < 1 sec
Spectral Analyzer DRS spectral engine
Spectral Interval 10 nm
Spectral Range 400 nm to 700 nm
Spectral Reporting 400 nm to 700 nm with 10mm interval
Color Differences CIE ∆E* (1976), ∆ECMC, CIE ∆E* (2000), and CIE ∆E* (1994)
Color Spaces CIE L*a*b*, CIE L*C*h°, CIE XYZ and Yxy
Illuminants A, C, D50, D55, D65, D75, F2, F7, F11, D12
Observers 2° and 10°
Humidity 30 to 85% RH (non-condensing)
Operating Temperature Range 10°C to 35°C
50°F to 95°F
Storage Temperature Range -20° to 50°C
-4° to 122°F
Dimensions (length, width, height) 18 cm x 7.8 cm x 7.6 cm
7.1" x 3.1" x  3.0"
Weight  700 g
1.6 lbs.
3rd Party Software Supported

X-Rite ColorCert, X-Rite Color iQC, X-Rite InkFormulation, X-Rite NetProfiler and many others

Communication Interface USB 2.0
Bluetooth (optional) - Class II
Configuration Options Bluetooth, NetProfiler
Instrument Display Color touch-screen, 320 x 240 pixels
Languages Supported Chinese Simplified, Chinese Traditional, Czech, Danish, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Slovenian, Spanish, Swedish, Turkish
Software Development Kit

Yes

Software Modes Densitometer, Standard, Advanced
User Experience Start-up wizard, configurable
Battery

Lithium Ion, 7.4VDC, 2200mAh

Voltage 12 VDC @ 2.5 A
Sample/Measurement Max. 5000 samples
Standards More than 20'000 standards (incl. data for all M modes)
Density Range 0.0 D – 3.0 D
Density Standards Status A, E, I, T and G
Industry Standards ISO 5-4:2009(E), ISO 13655:2009
BestMatch Feature Yes
Calibration Automatic on integrated white reference
Embedded NetProfiler Support Yes
G7 Certification Yes
NetProfiler Support Yes
PantoneLIVE Support Yes
Pass / Fail Yes
Warranty 1 year
What's Included? USB cable, power supply, CD with software and documentation, docking/charging station, quick start guide, carrying case, device certificate
Macintosh MacOS X 10.8, 10.9, 10.10, 10.11
Windows Windows XP (32bit), Windows 7 (32 and 64 bit), Windows 8 (32 and 64 bit), Windows 10 (32 and 64 bit)

Case Studies

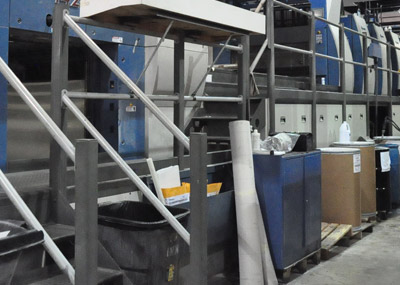

UNIMAC Ups its Color Game with X-Rite Technology and Services

UNIMAC needed to improve its level of quality and consistency, and reduce the overall amount of waste in time and materials caused by the need to reformulate special inks during press runs, remake plates and re-manufacture work that does not meet internal or customer expectations.


You Might Also Like

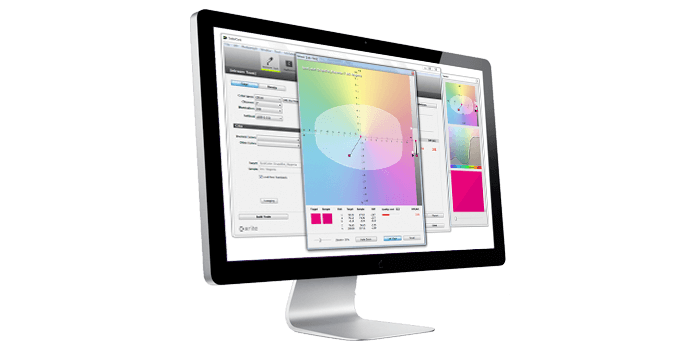

ColorCert Desktop Tools

Quality Assurance Software


ColorCert Desktop Tools are modular solutions enabling accurate creation of color specifications and process control at multiple points throughout the packaging workflow.

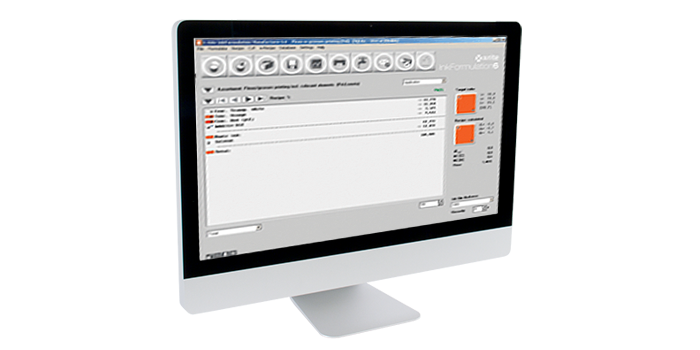

InkFormulation Software

Formulation Software


InkFormulation Software is a fast, accurate, consistent ink formulation, formula creation, storage, approval and retrieval solution for offset, flexo, gravure and screen-printing inks.

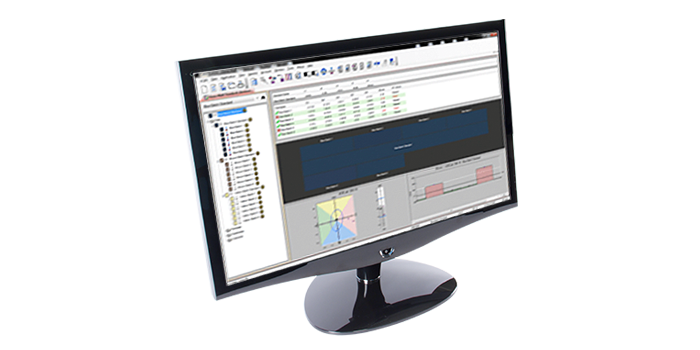

Color iQC

Quality Assurance Software


Color iQC is a unique, job-oriented upgradeable color quality control solution designed to meet evolving color measurement and management requirements in all industrial market segments.

Quick Compare

Measurement Geometry 45°/0° ring illumination optics, ISO 5-4:2009(E) 45°/0° ring illumination optics, ISO 5-4:2009(E) 45°/0° ring illumination optics, ISO 5-4:2009(E)
Inter-Instrument Agreement Average: 0.25 ΔEab,
Max: 0.45 ΔEab (for M3: 0.55 ΔEab)
(Measurements using X-Rite manufacturing standards at a temperature of 23°C +/- 1°C, 40-60% RH for all measurement modes on 12 BCRA color tiles and a white ceramic reference (D50, 2°))
Average: 0.25 ΔEab,
Max: 0.45 ΔEab (for M3: 0.55 ΔEab)
(Measurements using X-Rite manufacturing standards at a temperature of 23°C +/- 1°C, 40-60% RH for all measurement modes on 12 BCRA color tiles and a white ceramic reference (D50, 2°))
Average: 0.25 ΔEab,
Max: 0.45 ΔEab (for M3: 0.55 ΔEab)
(Measurements using X-Rite manufacturing standards at a temperature of 23°C +/- 1°C, 40-60% RH for all measurement modes on 12 BCRA color tiles and a white ceramic reference (D50, 2°))
Light Source Gas filled tungsten (illuminant type A) and UV LED Gas filled tungsten (illuminant type A) and UV LED Gas filled tungsten (illuminant type A) and UV LED
Measurement Conditions M0, M1 (part 1) , M2, M3 M0, M1 (part 1) , M2 M0, M1 (part 1) , M2, M3
Measurement Time < 1 sec < 1 sec

< 1 sec

Spectral Analyzer DRS spectral engine DRS spectral engine DRS spectral engine
Spectral Interval 10 nm 10 nm 10 nm
Spectral Range 400 nm to 700 nm 400 nm to 700 nm 400 nm to 700 nm
Patch Size 3mm x 3mm
(with 1.5mm aperture)
Scan Length Max. 112 cm (44")
Scanning Speed 1.5 mm aperture on 4 mm patches:
Max: 180 mm (7”) / sec
Average 100 mm (3.9”) / sec
