AxF Sample File Library

AxF Sample Files

Sample AxF files produced by TAC7 and PANTORA

Date Published: 02/03/2017   Last Update: 02/03/2017

AxF files are material files which are currently produced by the TAC7 Scanner and the accompanying PANTORA software. The files contained here can be used to test integration of the AxF SDK into your applications and integration within other Third Party rendering applications and other aspects of your workflow. Each compressed package contains an AxF material, a sample rendering in a default environment and possibly extra maps as noted for testing. AxF files currently come in three flavors:

  • SVBRDF
  • CarPaint
  • BTF

The BTF formats are not being actively upgraded so all natively supported versions are in AxF 1.0 or are available via legacy format importing. SVBRDF and CarPaint formats are progressively being upgraded and various versions are available from this site. To get a comprehensive set of test samples you need to be licensed as part of the AxF SDK program. To learn more about AxF, refer to the white paper.

Materials in this section can be used in your environment for testing and are freely available for downloading for your users. The categories below are organized by release.

While you are permitted to distribute these materials, we recommend that anyone who uses these materials obtain them from this site directly as the content is subject to change.

Included in each download link on this page: All AxF files in the identified category along with sample renderings for each material.


AxF 1.0 BTF

Description: AxF 1.0 BTF (Size: 254 MB) Download

Notes: BTF formats are more complex. These files are produced by the DOME and are currently not being upgraded (but may be in the future).

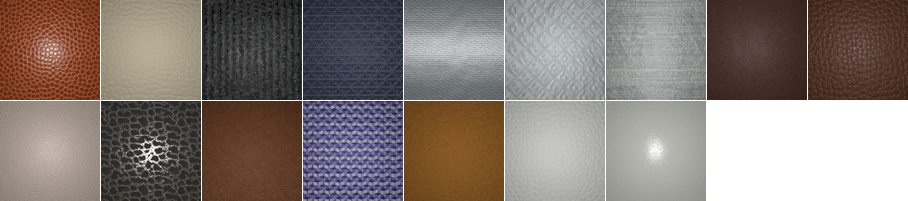

AxF 1.0 SVBDRF

Description: AxF 1.0 SVBRDF (Size: 613 MB) Download

Notes: AxF 1.0 SVBRDF format has the base level of maps supported, Diffuse, Specular, Roughness, Normal and Anisotropic.

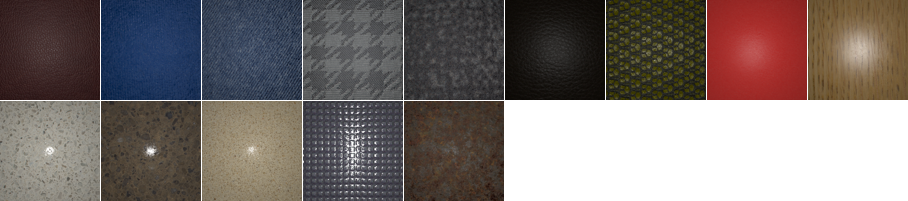

AxF 1.1 SVBDRF

Description: AxF 1.1 SVBRDF (Size: 846 MB) Download

Notes: AxF 1.1 contains improvements for the SVBRDF format by adding a Fresnel map and a ClearCoat normal map with an Index of Refraction Map.

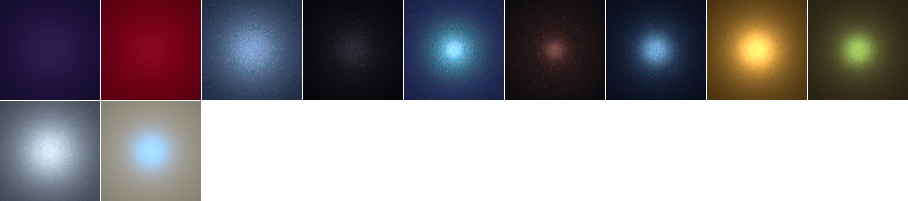

AxF 1.2 CarPaint V2 CPA2

Description: AxF 1.2 CarPaint version 2 (CPA2) (Size: 673 MB) Download

Notes: AxF 1.2 contains improvements for the CarPaint model (CPA2). These improvements include a ClearCoat normal map for orange peel, and Index of Refraction Map, an improved flake model, and some improvements to the color table.

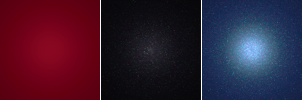

AxF 1.3 Non-Refracting Clearcoat CPA2

Description: AxF 1.3 Non-refracting ClearCoat CarPaint (CPA2) (Size: 150 MB) Download

Notes: AxF 1.3 contains a version of the CarPaint version 2 (CPA2) with non-refracting clear coat. This format is required for compatibility with NVIDIA’s MDL format as integrated into iRay.


AxF Clearcoat

Description: AxF 1. 3 Non-refracting ClearCoat SVBRDF (Size: 10 MB) Download

Notes: AxF 1.3 SVBRDF with non-refracting clear coat. This format is required for compatibility with NVIDIA’s MDL format as integrated into iRay.




In addition to the collected ZIP files above, follow the links below to access individual images and AxF samples (smaller files).




Description: AxF 1.0 BTF   Date Added: 02/03/2017   Last Update: 02/03/2017


Description: AxF 1.0 SVBRDF   Date Added: 02/07/2017   Last Update: 02/07/2017


Description: AxF 1.1 SVBRDF   Date Added: 02/03/2017   Last Update: 02/03/2017


Description: AxF 1.2 CarPaint version 2 (CPA2)   Date Added: 02/03/2017   Last Update: 02/03/2017


Description: AxF 1.3 CarPaint (CPA2)   Date Added: 02/03/2017   Last Update: 02/03/2017


Description: AxF 1.3 SVBRDF   Date Added: 02/03/2017   Last Update: 02/03/2017
