Model #: ci64-xr

Ci64

Multi-Purpose Measurement

The Ci64, X-Rite’s most precise handheld sphere spectrophotometer, is available in three models with simultaneous SPIN/SPEX, correlated gloss and a UV option.

Consistent Color for Improved Profitability

Consistent color improves profitability. Inconsistencies can occur between customer specification and final production as well as from batch to batch. Customers demand consistent color, yet to establish a more compelling presence in a crowded marketplace, they are using more metallics, special effect finishes and textures to help their products stand out. These materials and finishes add value to products and packaging. But they are also more expensive, making consistent color management and an effective quality control program a must in order to reduce waste and rework.

The Ci64’s large high-resolution color screen, Graphical Jobs™ interface* and configurable menus make it fast and easy for users to understand color measurement procedures, bring consistency to measurement processes and quickly view measurement data. The Ci64’s flip shoe mechanism adds flexibility and makes it easy to measure difficult-to-reach areas. And a simple lock button ensures that mistakes are not made during quality checks. Add the UV option if samples include optical brightening agents.

Benefits:

  • Accurately measure reflective or uneven surfaces or materials including optical brightening agents for a wide variety of products and packaging types.
  • Ensure a color quality audit trail across multiple devices and locations to ensure consistent color and brand integrity in a supply chain.
  • Access up to 4,000 reference samples stored in the device for fast access to existing data.
  • Increase instrument up-time with optional dual-bay charging to use the Ci64 while charging the second battery.
  • Remotely ascertain and optimize with NetProfiler -With NetProfiler, users can apply corrections to improve measurement performance, with or without a PC connection.

The Ci64 is available in three models. All three support simultaneous SPIN/SPEX output and Correlated Gloss measurements and have embedded NetProfiler support. Choose from:

  • The Ci64 with switchable 4mm and 8mm measurement apertures;
  • The Ci64L, featuring a 14mm measurement aperture for measuring larger samples; or
  • The Ci64UV, with switchable 4mm and 8mm measurement apertures and both Tungsten and UV LED illumination

A remote measurement trigger allows operators to initiate hands-free measurement. USB and Bluetooth** connectivity are available.

** Bluetooth available in compliant countries only (CE, USA, Canada, China, India, Japan, Korea, Taiwan)

Need More Information?

1.888.800.9580

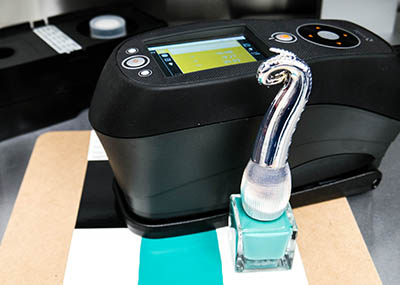

Get 20% off the Ci6x Series When You Trade-In Your Handheld Spectrophotometer

The portability and quality of the Ci62 and Ci64 provides an unparalleled flexibility and accuracy. Get the most precise and consistent sample measurement.

Get on the Path to Brand Color Consistency

Save on a quick start bundle and get started down the path to a data-driven color and print quality program, so you can see improved color quality on your brand packaging quickly and easily.

Specifications

Short Term Repeatability - White .04 ΔE*ab on white ceramic
Measurement Geometry d/8°
Inter-Instrument Agreement 0.13 ΔE*ab avg.
Illumination Spot Size 20mm or 14mm and 6.5mm
Lamp Life Approx. 500,000 measurements
Light Source
Gas-filled tungsten lamp
+ UV LEDs*
Measurement Cycle Time ≈ 2 seconds
Measurement Spot 14mm or 8mm and 4mm
Measurement Time ≈ 2 seconds
Photometric Range 0 to 200%
Photometric Resolution 0.01%
Spectral Analyzer Blue-enhanced silicon photodiodes
Spectral Interval 10nm
Spectral Range 400nm-700nm
Spectral Reporting 10nm
Color Differences [√/X], Δecmc, Δlab,  ΔE00, Δreflectance,  ΔE94, ΔXYZ, ΔL*a*b*, ΔYxy, , ΔL*C*h°, ΔL*u*v*, Verbal Difference
Color Spaces Lab, L*a*b*, Reflectance,  L*C*h°, Munsell Notation, XYZ, Yxy, L*u*v*
Illuminants A, C, D50, D65, F2, F7, F11 & F12
Observers 2° & 10°
Standard Indices [√/X], YI1925, WI Taube, ΔWI73, Reflectance, WI98, MI, Δreflectance,  ΔWI Berger, WI73, MI6172, ΔYI98, ΔWI Hunter, Gray Scale, WI Berger, Gloss, ΔYI73, ΔWI Stensby, YI98, WI Hunter, ΔYI1925, ΔWI Taube, YI73, WI Stensby, ΔWI98, Averging, 555 Shade Sort
Reflectance Aperture(s) 1 or dual
Humidity 5% to 85%, non-condensing
Operating Temperature Range 50° to 104°F (10° to 40°C)
Storage Temperature Range '-4° to 122°F (-20° to 50°C)
Dimensions (length, width, height) 21.3 cm 9.1 cm 10.9 cm
Weight 1.06 kg
Package Dimensions (length, width, height)  51cm, 20cm, 41cm
Shipped Weight '7kg
Communication Interface USB 2.0, Bluetooth*
Import/Export Format CSV
Instrument Display Backlit Color Graphic LCD
Languages Supported English, German, French, Spanish, Italian, Portuguese, Chinese Simplified, Chinese Traditional, Korean, and Japanese
Software Development Kit XDS4
Battery Li-ion
Battery Life
1000 measurements (non-UV)
@ 10 sec intervals
Voltage
100-240VAC 50/60Hz,
12VDC @ 2.5A
Sample/Measurement 4000
Standards 1000
Calibration White, Zero, UV*
Embedded NetProfiler Support Yes
NetProfiler Support Embedded
PantoneLIVE Support Via software
Pass / Fail Yes
Sample Preview Targeting window
Transform Support Embedded
Warranty 12 months
What's Included? Instrument with white calibration standard, black trap, green standard, manual(CD), AC adapter, USB cable, carry case, UV cal standard*

Case Studies

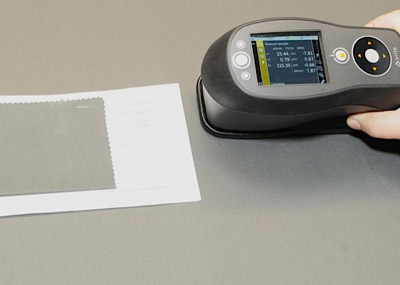

Ultimate Textile Case Study

Ultimate Textile was looking for the next generation in handheld devices to ensure the continued delivery of the highest quality dyed fabrics to its customers.

Testimonials

“Having a reliable portable instrument like the X-Rite Ci64UV that we can use throughout the pant to confirm color accuracy at all stages of production has made a significant difference to our business” - Anthony Guariello – President of Ultimate Textiles
