Model # ERX145
ERX145 Lab
New
For Paint & Coating Measurements

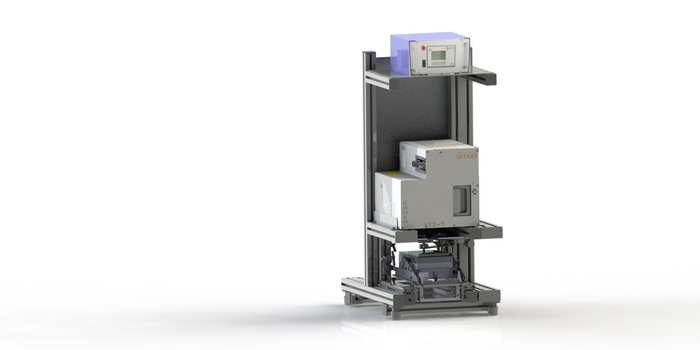

- Can be mounted on a lab stand with heating table
- Takes 0°:45° measurements with a 60mm measurement distance and 30mm measurement spot
- Correlates with measurements from ERX145 Inline on the production line
Overview
Device Geometry
Inter-Instrument Agreement
Reproducibility

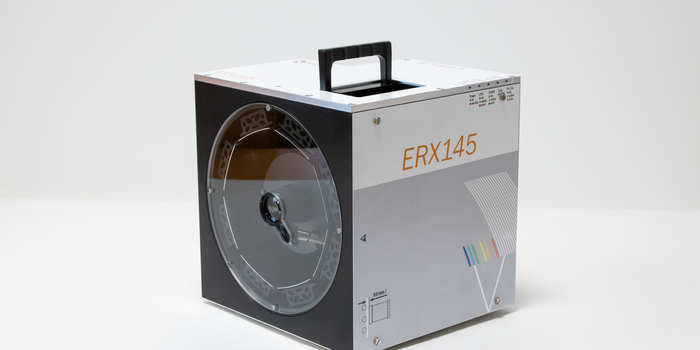

![ERX145]()
![ERX145]()
Specifications
269
mm

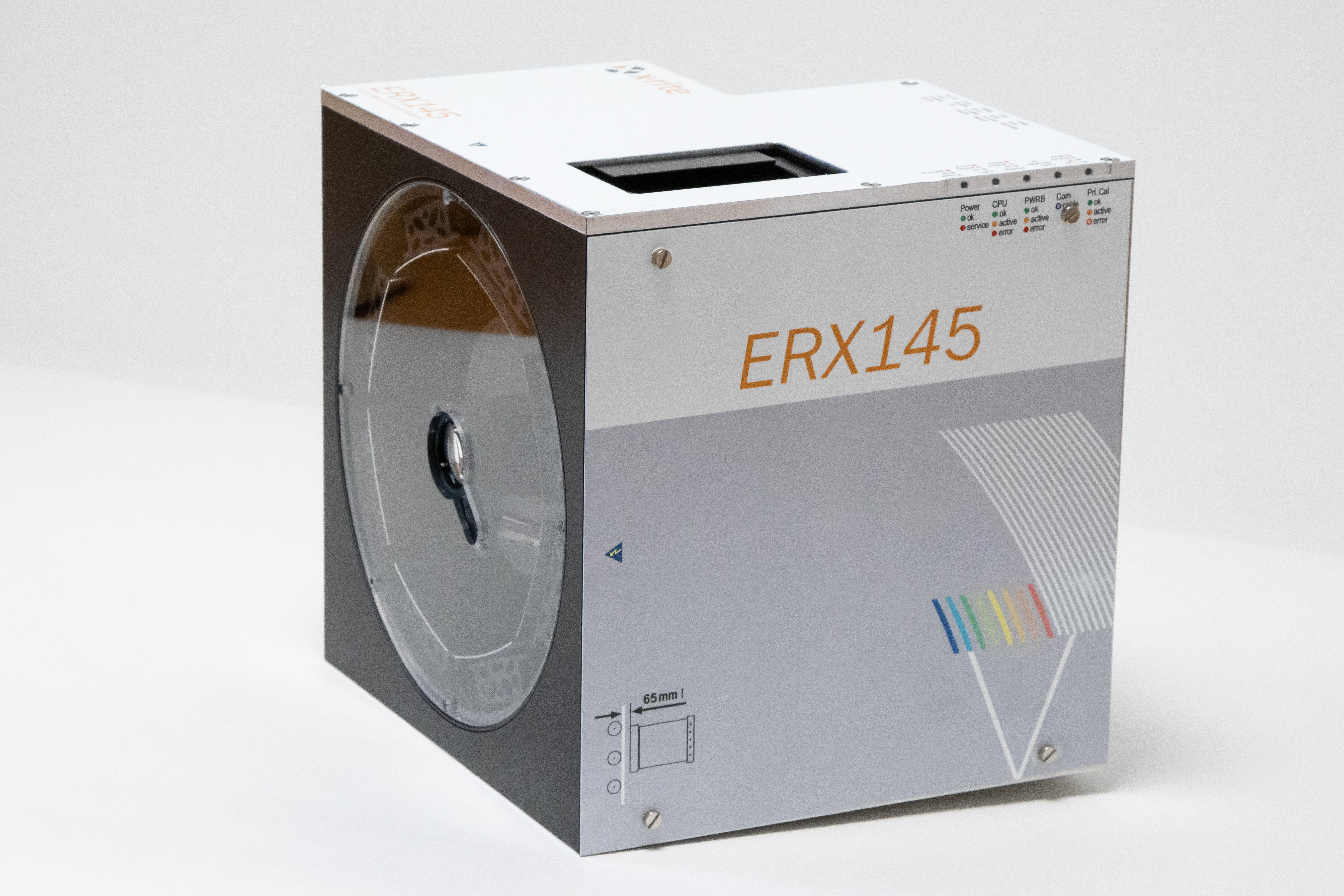

![Image of ERX145]()
282
mm
269
mm
282
mm
Support
Resources
Verify Color Accuracy in the Lab
Designed to take measurements on paint and coatings, the ERX145 Lab spectrophotometer can be mounted on a stand with a heated table to compensate thermochromic effects and offer tight correlation with the ERX145 Inline spectrophotometer.
45°:0°
≤0.3
dL*, da*, db*
≤0.03
dL*, da*, db*
Make Color Corrections with Accurate Spectral Data
When paired with ESWin QC software, the ERX145 Lab provides actionable guidance so operators can make educated color corrections. It offers excellent correlation to the ERX145 Inline spectrophotometer and objective evaluation according to accepted international standards to ensure the integrity of your coating color program.
Measure Color on Coated Surfaces
With a 45°:0° measurement geometry, the ERX145 Lab spectrophotometer can be used in the laboratory with a heated table to replicate measurements from hot samples on the coating line. The built-in pyrometer measures the actual temperature of the strip simultaneously while measuring the color. This ensures the hot coil measured inline with the ERX145 will have the same color readings as when it is measured in the laboratory at room temperature.
Evaluate Color in the Lab
Mounted on a table, it takes measurements using a 30mm measurement spot for minimal variation between inline and lab measurements.
Short-Term Stability and Long-Term Accuracy
Uses real dual beam measurement and automatic wavelength calibration.
Temperature Controlled Measurements
Can use a heating/cooling table to quantify the thermochromic effect and transfer to the inline system for readings at room temperature.
ERX145 Lab
