Model #: xcm
X-RiteColor® Master Software
Quality Assurance Software
Brak produktu
X-RiteColor Master is the industry’s most versatile color management software, compatible with sphere, 0/45 and multi-angle spectrophotometers with contact and non-contact.
Industry-leading color management for manufacturing
Color mistakes can lead to expensive production downtime, rework and delayed time to market. With X-RiteColor® Master Software as a key color workflow element in manufacturing operations, users have immediate access to accurate, reliable color control data. It is compatible with a variety of spectrophotometer types, including 45/0, sphere and multi-angle, and can be used with both contact and non-contact instruments. It supports both color formulation and quality control operations.
Color Master’s Graphical Job function allows setting of measurement points on a visual bitmap for easy analysis and comparison.
Benefits:
- Standard, custom, and multiple tolerance options reduce set-up time and operating costs.
- Organization and measurement functions work in conjunction with handheld instruments to reduce measurement error.
- Multiple types of standard and custom reports can be created to simplify recording and access to color data.
- With color coding, tags, and notes, samples can be organized and tagged for quick assessment and easy data management.
- Enables designation of leftover material for reuse, reducing the cost of formulation, inventory and waste disposal.
Specifications
| Measurement Conditions | Reflectance, Transmission, SCI / SCE |
|---|---|
| Supported Profile Format | N/A |
| Color Differences | FMCII, CIE DL*, Da*, Db*, CIE DL*, DC*, DH*, Hunter DL, Da, Db, All Attributes of CIELab, CIELch or HunterLab, CMC (l:c), CIE2000 (l:c:h) |
| Color Spaces | CIE L*a*b*, CIE L*C*h*, Hunter Lab, CIE (XYZxy) |
| Illuminants | A, C, D50, D65, D75, F2, F7, F11, F12 |
| Observers | 2 degree,10 degree |
| Standard Indices | DIN6172, B-Depth, TAPPI452 B, TAPPI452 dB, DIN6175, Haze, Opacity, E313 98 dT, E313 98 T, Ganz / Griesser dT, Whiteness [E313, Ganz], Yellowness [D1925, E313] |
| 3rd Party Software Supported | N/A |
| Compatible Software Supporting DNG Profiles | N/A |
| Configuration Options | QAI, QAII, Metallix QA, FMI, FMII, FMIII, Web Edition |
| Databases | Raima |
| Experience Level | Beginner to Advanced |
| Import/Export Format | MIF, XTF |
| Languages Supported | English, French, German, Spanish, Italian, Portuguese, Japanese, Chinese |
| Software Modes | N/A |
| Supported Devices | eXact, eXact XP, CI4200, CI52, CI62, CI64, 962, 964, Color i5, Color i7, CE-7000A, CI7600, CI7800, SP62, SP64 |
| User Experience | Configurable |
| Industry Standards | See Standard Indices |
| Ink Wells / Ink Units | No |
| Mobile Device Compatibility | No |
| NetProfiler Support | Yes |
| PantoneLIVE Support | No |
| Pass / Fail | Yes |
| Sample Preview | Yes |
| Scanner Target Support | N/A |
| What's Included? | Installation CD with Instructions |
| Android | No |
| Apple iOS | No |
| Macintosh | No |
| Windows | Win 7, Win 10 |
| Available Disk Space | 5 GB |
| Connectivity | USB-Port |
| Display Resolution | 1024 x 768 |
| Memory | 2GB |
| Number of Displays Supported per Workstation | 1 |
| Optical Drive | Yes |
| Processor | Core 2 Duo, 2 G |
| Security | Install Only |
| Video Card | N/A |
| Compatible Android Devices | None |
| Compatible iOS Devices | None |
Featured Support
Software:- X-Rite Web Edition Connection Client v8.9.6
- Color i7 Driver v6.50.09.0403
- Color i5 Driver v6.50.09.0403
- X-RiteColor Master v8.9.6
- X-RiteColor Master Web QA II v8.9.6
- What is Meant by the Term "Observer Angle"?
- Measuring "True" Color; Should I use SCE or SCI?
- Database Server Will Not Start (5 step fix)
- Windows7 and Vista Compatibility
- X-RiteColor Master - XRGA Information
Featured Training
Online Training / eLearning: Onsite Training: Seminar: Zobacz wszystkie szkoleniaMoże ci się spodobać również
Spektrofotometr ręczny Ci64
Dla najbardziej wymagających użytkowników, oferuje najbardziej precyzyjne pomiary
Najbardziej precyzyjny ręczny spektrofotometr sferyczny firmy X-Rite, Ci64 jest dostępny w trzech modelach oferujących jednoczesne SPIN/SPEX, skorelowany połysk oraz opcję UV.

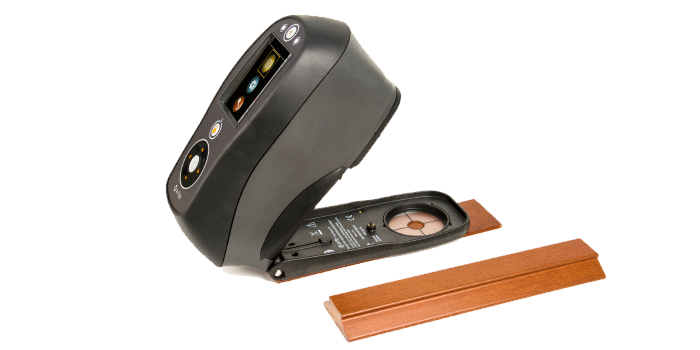

Spektrofotometr ręczny Ci62
