Model #: ma96


Request a Quote

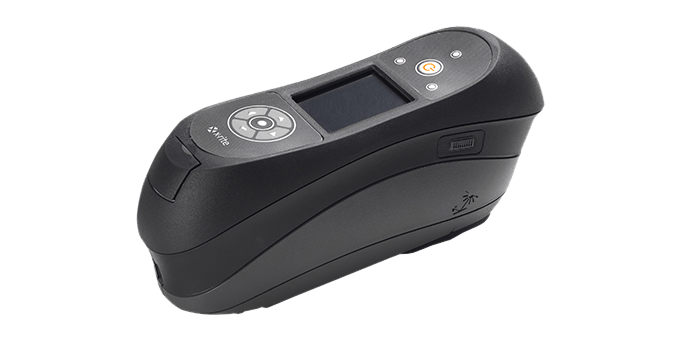

The X-Rite MA96 multi-angle spectrophotometer uses 6 angles to accurately measure special effect paints and coatings, with pressure sensors to ensure the instrument is placed correctly.


Short Term Repeatability - White ► 0.03 avg. ∆E* white ceramic
Measurement Geometry 6 Aspecular measurement angles
Inter-Instrument Agreement 0.18 ∆E* avg. on BCRA
Illumination Spot Size Approx. 12mm (.5 inch)
Lamp Life 750,000 measurements
Light Source 45° tungsten halogen
Measurement Cycle Time 2 sec.
Measurement Spot Approx. 12mm (.5 inch)
Measurement Time Approx. 2 seconds
Spectral Interval 10 nm
Spectral Range 400-700 nm
Color Differences L*a*b*, L*C*h°, ΔE*; ΔECMC; ΔE DIN6175, ΔE2000
Illuminants A, C, D50, D65, F2, F7, F11 & F1
Observers 10
Humidity 85% Relative Humidity max (non-condensing)
Operating Temperature Range 50F to 104F (10C to 40C)
Storage Temperature Range -4F to 122F (-20C to 50C)
Dimensions (length, width, height) 3.4 x 4.5x 10.6 inches (8,7cm x 11,4cm x 26,9cm)
Weight 2.5 lbs 1.13 kgs
Communication Interface USB 2.0 Bluetooth wireless (in compliant countries only)
Instrument Display High resolution Color LCD
Languages Supported D,F,Eng,P;Esp,Kor,J,Chinese
Battery Lithium ion
Voltage 7.4vDC @ 2400mAh
Industry Standards ASTM D 2244, E 308, E 1164, E 2194; DIN 5033, 6174, 6175-2; ISO 7724; SAE J1545.
Calibration white/black calibration
Warranty 1 year



  • Driver for MA94 MA96 MA98 v2.2.1 Download


  • MA98 Firmware Loader v1.3.2147 Download
  • MA98 Firmware Loader v1.3.2153 Download

User Guides and Manuals

User Guides

  • Multi-Angle Device User Guide Download

Questions? Need a Quote? Contact Us.  1.800.248.9748
