Model #: carflash

CarFlash

Request a Quote

CarFlash is a non-contact multi-angle spectrophotometer designed to be integrated inline in robotics systems to ensure integrity of color quality throughout the production process.

Questions?  1.800.248.9748

Adding value to robotics in automotive manufacturing

This non-contact multi-angle spectrophotometer works in concert with an industrial robot to collect colorimetric data on special effects coatings to ensure fully automated collection of quality control information during the automotive manufacturing process. By integrating CarFlash inline, color quality can be controlled and managed earlier in the production process and with greater repeatability, eliminating expensive color problems that can result in rejection of the vehicle or component.

Non-contact inline measurement mitigates the risk of damaging paint during the measurement process. In addition, there is excellent inter-instrument agreement between CarFlash and X-Rite multi-angle spectrophotometers used in the laboratory. This ensures color consistency from design through manufacturing for even the most complex special effect paints and coatings.

Benefits:

  • CarFlash enables 100% sampling to improve quality and overall process integrity, catching
    potentially expensive errors early in the manufacturing process.
  • Non-contact operation eliminates the risk of damage to paint and other materials along with minimizing the potential resulting waste.
  • This fully-automated system integrates inline with an industrial robot.
  • Multiple angles of measurement from 15⁰ to 75⁰ are performed simultaneously to ensure full part coverage.
  • Combined with compatible multi-angle spectrophotometers from X-Rite in other parts of the automotive design and manufacturing workflow, CarFlash ensures the utmost in manufacturing line quality and consistency.
In addition to colorimetric data, CarFlash collects surface temperature data with each measurement. It is also useful in detecting the Orange Peel effect, a defect in paint layering that occurs when paint dries too quickly or has surface bond problems that result in abnormalities in the surface layer.

Specifications

Short Term Repeatability - White dE< 0.1
Measurement Geometry 15°/25°/45°/75°
Measurement Time 3s incl. positioning by robot
Measurement Working Distance 35 mm
Spectral Interval 400-700nm
Spectral Range 10nm

Support

Looking for support? Visit this product's support page for comprehensive support information.

Support


You Might Also Like

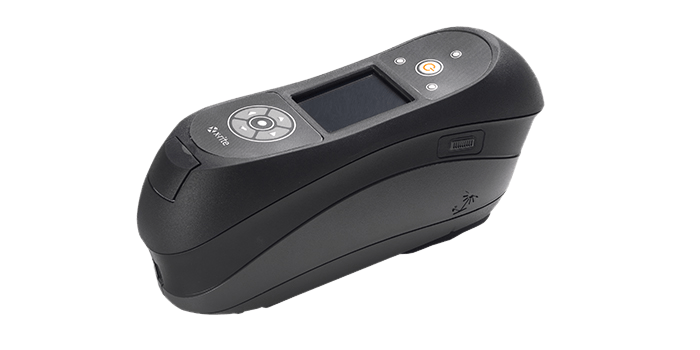

MA94

MA94

The X-Rite MA94 multi-angle spectrophotometer uses 5 angles to accurately measure special effect paints and coatings, with pressure sensors to ensure the instrument is placed correctly.

Request a Quote

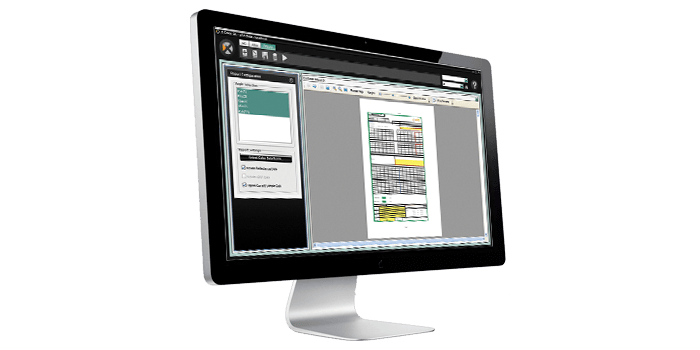

X Color QC
